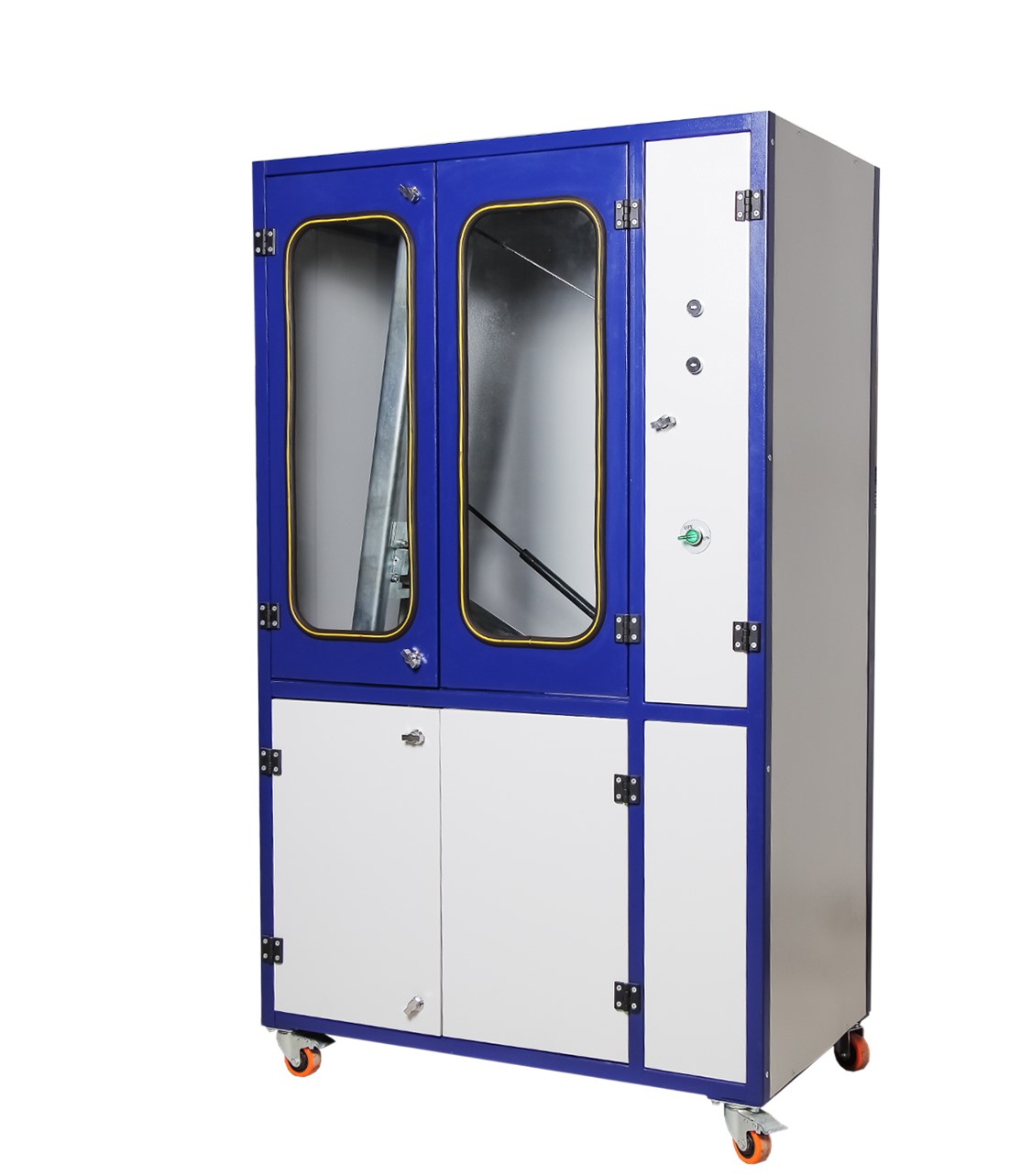

Leakage Test Machine under Internal Pressure with Bending
A specialized machine from **Azmoon Polymer Sepahan** to test pipe joint leakage under simultaneous internal pressure and bending forces. Fully compliant with ISO 3503 & INSO 13502. Supplied by PTS Lab for oil, gas, and water industry QC.
Description
Documentation
Description
The Leakage Test Machine under Internal Pressure with Bending is an advanced device designed to conduct critical tests for leakage detection at the connection points between mechanical fittings and pipes. This instrument is specifically engineered to assess pipe joint integrity under the demanding, real-world conditions where they are subjected to internal hydrostatic pressure *while simultaneously* being exposed to bending forces.
This capability is essential for any industry where pipes experience both internal pressure and external stress, such as in oil, gas, petrochemical, and water/wastewater systems.
Key Features & Specifications:
- Adjustable Fixtures (ISO 3503): Equipped with fixtures compatible with various pipe types. These can be precisely adjusted according to radius and length, ensuring full compliance with ISO 3503 standards for testing pipes of varying diameters.
- Precision Bending System: A high-torque electric motor and gearbox system is used to apply precise and efficient bending force to the pipes over the fixtures, perfectly simulating operational stress.
- Accurate Force Application: The vertical compression force is applied using standardized weights, offering three selectable loads of 5 N, 10 N, and 20 N for exact control over test conditions.
Standards and Compliance
This device is designed and manufactured in strict accordance with international standards, including INSO 13502 and ISO 3503. This ensures full alignment with global criteria, guaranteeing the accuracy, reliability, and repeatability of all test results for assessing leakage resistance.Applications & Usability
This machine is an indispensable tool for research laboratories, quality control units, and manufacturers. It enhances product quality and safety by providing precise, scientific evaluations of the actual performance of pipe fittings and joints, thereby minimizing risk and enhancing system safety.Documentation
Product Resources
For detailed technical information, specifications, and operational guides related to this product, please download the available documentation.
