Compact Tube Furnaces up to 1100 °C

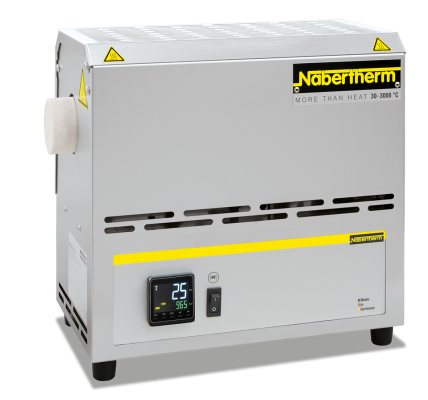

The Nabertherm Compact Tube Furnace RD 30/200/11 is a “Made in Germany” all-rounder for your lab. Its unique design, with heating wires wound directly on the tube, provides exceptionally fast heat-up rates (20 min to 1000 °C) up to 1100 °C. Compact, lightweight, and efficient.
The Nabertherm Compact Tube Furnace RD 30/200/11 is the ideal all-rounder for your laboratory, offering an impressive price-to-performance ratio. This “Made in Germany” furnace is exceptionally compact and lightweight, making it perfect for any benchtop.
Its key innovation is a unique design where the heating wires are wound directly onto the ceramic working tube. This makes the tube itself part of the heating system, resulting in exceptionally fast heat-up rates (just 20 minutes to 1000 °C). This furnace is designed for reliable horizontal operation up to 1100 °C.
Standard Equipment:
- “Made in Germany” Quality: Engineered for reliability and precision.
- Max Temperature: 1100 °C.
- Ultra-Fast Heating: Heating wires are wound directly around the working tube for very fast heat-up rates.
- Working Tube: Includes a C 530 ceramic working tube (Inner Ø 30 mm) and two fiber plugs for operation in air.
- Durable Housing: Dual-shell ventilated housing made of textured stainless steel for low surface temperatures.
- RCF-Free Insulation: Exclusive use of high-quality insulation materials without categorization (non-carcinogenic).
- Precision Control: Thermocouple Type K for accurate temperature measurement.
- Standard Controller: Equipped with the R8 controller.
- Quiet Operation: Uses solid-state relays for low-noise heating.
Enhance the safety and functionality of your Nabertherm tube furnace with these optional accessories.
Available Options & Accessories:
- Over-Temperature Limiter: A critical safety feature (thermal protection class 2) with an adjustable cutout temperature to protect the furnace and your valuable load during unattended operation.
- Gas Supply System 1: A manual gas supply system for one non-flammable process gas (Note: this is not a gas-tight system).
Related Products:
This furnace is part of our complete range of Nabertherm laboratory products. For processes requiring larger tube diameters or higher temperatures, please browse our full category of tube furnaces.
The RD 30/200/11 is a compact, fast, and efficient tube furnace designed for horizontal use. Please note that temperature uniformity values are measured outside the tube.
| Model | Tmax (°C) | Inner Tube Ø (mm) | Heated Length (mm) | Constant Temp Length (+/- 5K) (mm) | Outer (W x D x H) mm | Load (kW) | Electrical | Weight (kg) | Heating Time (min) |
|---|---|---|---|---|---|---|---|---|---|
| RD 30/200/11 | 1100 | 30 | 200 | 65 | 350 x 200 x 350 | 1.6 | 1-Phase | 12 | 20 |
Note: Heating time is to Tmax -100 K. Outer dimensions may vary with additional equipment.
