High-Temperature Furnaces with Scale for determination of combustion loss and thermogravimetric analysis (TGA) up to 1750 °C
The Nabertherm LHT .. SW is a “Made in Germany” high-temperature furnace system for TGA and combustion loss analysis up to 1750 °C. This complete solution integrates a precision scale, **MoSi₂ heating elements**, and VCD software for automated process recording.
The Nabertherm LHT .. SW High-Temperature Furnace is a “Made in Germany” system specifically developed for **Thermogravimetric Analysis (TGA)** and the precise determination of combustion loss in the laboratory. Consequently, it is the ideal solution for analyzing sludges, household garbage, and a wide variety of other processes where results must be precise.
This is a complete, integrated system. In fact, it consists of a high-temperature furnace (1600 °C or 1750 °C), a table frame, a precision scale with a ceramic plunger, and a powerful software package. The software automatically records both the temperature curve and the weight loss over time, providing a complete TGA analysis or combustion loss report.
Standard Equipment:
Every LHT .. SW system includes these advanced features as standard:
- “Made in Germany” Quality: A complete, integrated system for TGA and combustion loss.
- Max Temperature: Available in 1600 °C or 1750 °C versions.

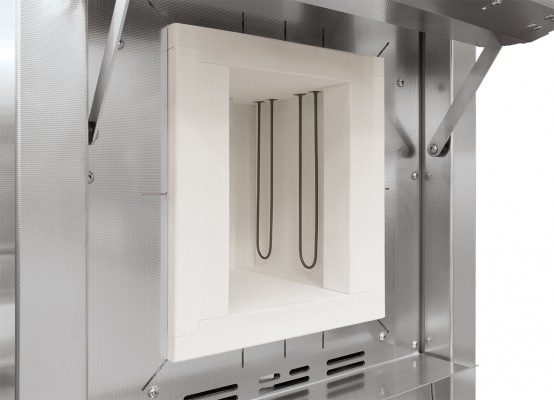

- MoSi₂ Heating Elements: High-quality Molybdenum Disilicide heating elements offer very good protection against chemical interaction.
- Uniform Heating: All-around heating (3 or 4-sided) for very good temperature uniformity.
- Precision Scale System: Includes the base, ceramic plunger with base plate, and one of four precision scale models.
- Advanced Software: Comes standard with the **VCD software package** for process control and documentation of temperature and combustion loss.
- RCF-Free Insulation: Exclusive use of high-quality, non-carcinogenic insulation materials.
- Durable Housing: Dual-shell ventilated housing made of textured stainless steel for low surface temperatures.
- Venting System: Includes an adjustable air inlet and an exhaust air opening in the roof.
- Precision Control: High-quality Type B thermocouple.
- Data Recording: Includes NTLog Basic for recording process data via a USB flash drive.
The Nabertherm LHT .. SW series is a complete system that includes the furnace, scale, and VCD software as standard. Therefore, no additional equipment is typically required for its operation.
