Furnaces with Stand for Horizontal and Vertical Operation up to 1500 °C

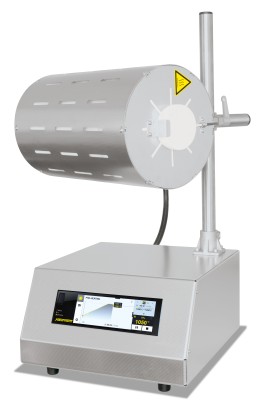

The Nabertherm RT Tube Furnace series offers maximum flexibility for any laboratory. This compact, “Made in Germany” furnace is designed for universal use, allowing for **infinitely adjustable operation (from 0° to 90°)**. It can be used horizontally, vertically, or at any specific angle, making it ideal for custom experiments or for integration into existing process systems.

Its innovative design features heating wires wound directly around the working tube, which enables **very fast heat-up rates**. The furnace is delivered as a complete system with an adjustable stand and an integrated controller in the furnace base. It can also be operated without the stand if safety guidelines are observed.

Standard Equipment:

• “Made in Germany” Quality: Engineered for flexible, high-performance lab use.
• Max Temperature: Available in 1100 °C, 1300 °C, or 1500 °C models.
• Full Adjustability: Infinitely adjustable angle (0-90°) and working height.
• Fast Heat-Up: Heating wires are wound directly on the working tube for rapid heating.
• Standard Working Tube: Includes a C 530 ceramic working tube and two fiber plugs for operation in air.
• Durable Housing: Dual-shell ventilated housing made of textured stainless steel for low surface temperatures.
• RCF-Free Insulation: Exclusive use of high-quality insulation materials without categorization (non-carcinogenic).
• Precision Control: High-quality Type S thermocouple for accurate measurement.
• Advanced Controller: Standard B510 controller (5 programs, 4 segments) with a clear touch-screen display.
• Quiet Operation: Uses solid-state relays for low-noise heating.
• Data Recording: Includes NTLog Basic for recording process data via a USB flash drive.

Enhance the safety and functionality of your Nabertherm RT tube furnace with these optional accessories.

Available Options & Accessories:

• Over-Temperature Limiter: A critical safety feature (thermal protection class 2) with an adjustable cutout temperature to protect the furnace and your valuable load.
• Gas Supply System 1: A manual gas supply system for one non-flammable process gas (Note: this is not a gas-tight system).
• Process Control Software: Integrate your furnace with the powerful VCD software package for comprehensive, PC-based process control, monitoring, and documentation.

Related Products:

These furnaces are part of our complete range of Nabertherm laboratory products. For larger, split-type furnaces, see our RS Series Split-Type Tube Furnaces.

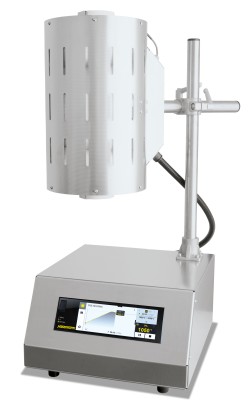

The Nabertherm RT Series is available in three high-performance models, offering a choice of 1100 °C, 1300 °C, or 1500 °C in a compact, adjustable frame.

Note: Temperature values are measured outside the tube.
