Rotary Tube Furnaces for Batch Operation up to 1100 °C

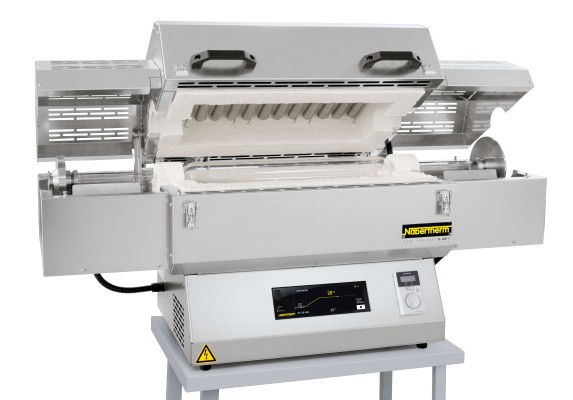

The Nabertherm Rotary Tube Furnace (RSRB series) is the professional “Made in Germany” solution for heat-treating materials in **batch operation**. Its primary feature is the **continuous rotation of the working tube**, which keeps the charge (like powders or granules) in constant motion. This ensures an exceptionally uniform heat treatment for the entire batch.

The standard system uses a special **quartz glass reactor with tapered ends**. This unique shape keeps the material contained within the heated zone during rotation. For emptying, the furnace has a **split-type (hinged) design** and a **beltless drive**, making it very easy to remove the entire reactor. This furnace also features free-radiating heating elements for very fast heat-up rates.

Standard Equipment:

• “Made in Germany” Quality: Engineered for advanced batch processing.
• Max Temperature: 1100 °C.
• Rotating Quartz Reactor: Includes a quartz glass reactor with tapered ends and two fiber plugs for operation in air.
• Split-Type Design: Hinged furnace housing (opens to < 180 °C) and beltless drive for easy reactor removal.
• Adjustable Rotation: Drive speed is adjustable from approx. 1-40 rpm.
• Free-Radiating Heating: Heating elements on support tubes for fast heat-up rates.
• RCF-Free Insulation: Exclusive use of high-quality insulation materials without categorization (non-carcinogenic).
• Durable Housing: Dual-shell ventilated housing made of textured stainless steel.
• Advanced Controller: Standard B510 controller (5 programs, 4 segments) with a clear touch-screen display.
• Precision Control: Thermocouple Type N.
• Quiet Operation: Uses solid-state relays for low-noise heating.
• Data Recording: Includes NTLog Basic for recording process data via a USB flash drive.

Customize your Nabertherm RSRB furnace into a highly advanced, automated process tool with these “Made in Germany” options.

Available Options & Accessories:

• Left/Right Tilting Device: A major upgrade for automation. This frame tilts the furnace for easy loading, and tilts the opposite way for unloading, without needing to remove the reactor.
• Three-Zone Control: Available for all models to achieve the highest level of temperature uniformity.
• Gas Supply Systems: A wide range of gas systems are available, including:

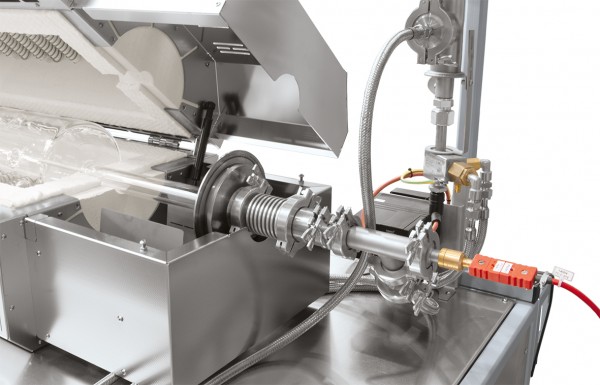

  • Gas Supply System 25: For non-flammable process gases with a gas-tight rotating outlet.
  • Gas Supply Package 4: For operation with **Hydrogen (H2)**.
• Vacuum Package: A powerful vacuum package, including a pump, to evacuate the working tube up to 10^-2 mbar.
• Mixing Reactor: An alternative reactor made of quartz glass with an integrated blade for enhanced mixing of the batch.
• Charge Control: Allows for temperature measurement directly within the working tube.
• Mobile Base: A base frame with transport casters to make the furnace mobile, with an integrated switchgear.
• Process Control Software: Integrate your furnace with the powerful VCD software package for comprehensive, PC-based process control, monitoring, and documentation.

Related Products:

These furnaces are part of our complete range of Nabertherm laboratory products. For non-rotating processes, see our RS Series Split-Type Tube Furnaces.

The RSRB 1100 °C series is available in five different sizes, with tube diameters of 80 mm or 120 mm, and heated lengths up to 1000 mm. All models are tabletop units, though an optional base with casters is available.

Note: Constant temperature zone (+/- 5K) is listed for single-zone / optional three-zone designs. Outer dimensions may vary with options.
