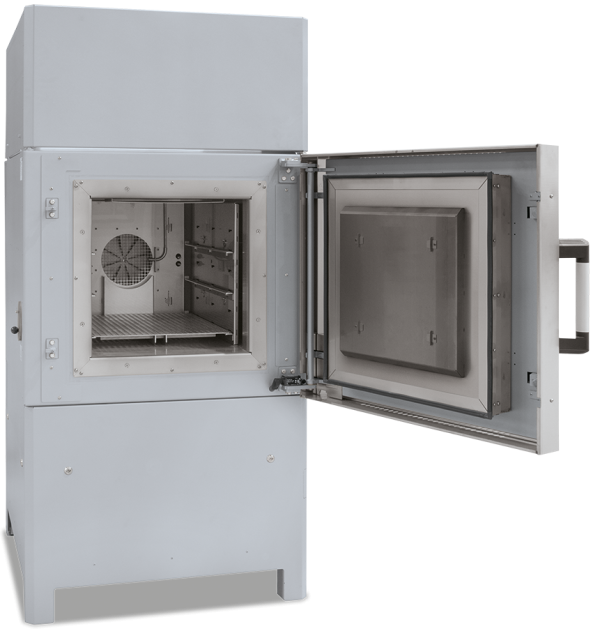

Nabertherm Forced Convection Chamber Furnaces up to 500 Liter Safety Technology
The Nabertherm NA .. LS Series is a “Made in Germany” Chamber Furnace with advanced safety technology. It is fully compliant with EN 1539 for safely drying charges containing solvents up to 450 °C. Available in models up to 500 liters, it features a powerful exhaust fan, monitored airflow, and a **P570 controller** as standard.
The Nabertherm NA .. LS Series is a “Made in Germany” chamber furnace specifically designed for processes involving flammable substances, such as drying components with solvent residues or curing paints. In fact, these furnaces are fully compliant with the safety standard EN 1539.
Unlike standard ovens, the NA .. LS series features a high-powered heating system and a powerful exhaust fan to ensure high air exchange rates and constant underpressure in the furnace. Moreover, the system includes monitored air circulation and exhaust, providing an ideal and safe solution for complex thermal processes. Applications include drying paints, evaporating solvents, and heat-treating charges that release flammable vapors.
Standard Equipment:
Every NA .. LS safety furnace includes these advanced features as standard:
- “Made in Germany” Quality: Engineered specifically for drying charges containing solvents.
- EN 1539 Compliant: Fully compliant with the European safety standard EN 1539.
- Max Temperature: 450 °C (Tmax 260 °C on the previous TR-LS model).
- Safety System: Includes a powerful exhaust air fan, monitored air circulation, and visual/audible malfunction signals.
- Standard Safety Feature: Comes standard with an over-temperature limiter with manual reset to protect the furnace and load.
- High-End Controller: Comes standard with the powerful **P570 controller** (50 programs, 40 segments each).
- Durable Housing: Dual-shell ventilated housing made of textured stainless steel for low surface temperatures.
- RCF-Free Insulation: Exclusive use of high-quality, non-carcinogenic insulation materials.
- Data & Software: Includes NTLog Basic for USB data recording, plus freeware NTEdit (Excel) and NTGraph for PC, and the MyNabertherm App for mobile monitoring.
You can further optimize your Nabertherm NA .. LS safety furnace for energy efficiency and advanced process documentation.
Available Options & Accessories:
- Energy Saving (EN 1539): An optional system to reduce the exhaust air flow rate to 25% after the main evaporation time, saving significant energy.
- Temporary Shut-Off (EN 1539): Allows for temporary deactivation of the safety system for processes where no flammable substances are released.
- Process Control Software: Integrate your furnace with the powerful VCD software package for comprehensive, PC-based process control, monitoring, and documentation.
Related Products:
These ovens are part of our complete range of Nabertherm laboratory products. For smaller, tabletop solvent ovens, see our TR-LS Series Safety Ovens.
The Nabertherm NA .. LS Series is available in 3 high-capacity models, all featuring a Tmax of 450 °C and full EN 1539 compliance. The table below includes the maximum volume of solvents (in grams) that can be safely processed at different temperatures.
NA .. LS Series Model Specifications
| Model | Tmax (°C) | Inner (w x d x h) mm | Volume (L) | Outer (W x D x H) mm | Load (kW) | Exhaust Rate (m³/h) | Max. Solvent (g) @ (75°/150°/250°/350°/450°C) | Electrical | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| NA 120/45 LS | 450 | 450 x 600 x 450 | 120 | 1250 x 1550 x 1950 | 18 | 100 – 120 | 51 / 20 / 9 / 5 / 4 | 3-Phase | – |
| NA 250/45 LS | 450 | 600 x 750 x 600 | 250 | 1350 x 1650 x 2080 | 24 | 100 – 120 | 93 / 36 / 17 / 9 / 7 | 3-Phase | – |
| NA 500/45 LS | 450 | 750 x 1000 x 750 | 500 | 1550 x 1900 x 2220 | 24 | 100 – 120 | 104 / 42 / 21 / 12 / 9 | 3-Phase | – |
Note: Outer dimensions may vary with additional equipment. Connected load may be higher depending on furnace design.
