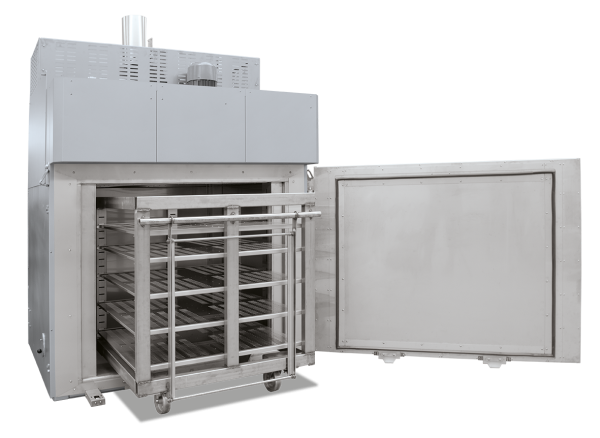

Nabertherm Chamber Ovens (KTR Series) 260 °C

The Nabertherm Chamber Ovens (KTR Series) provide “Made in Germany” solutions for complex drying processes and large-scale heat treatment up to 260 °C. Nabertherm engineers these ovens for heavy-duty use. Consequently, they feature high-performance horizontal forced air circulation that enables optimum temperature uniformity (better than +/- 5 °C) throughout the entire workspace.

Nabertherm builds the KTR series for durability. For example, the chamber uses high-quality, easy-to-clean 304 (1.4301) stainless steel. Moreover, the robust, high-quality mineral wool insulation provides for outer surface temperatures less than 25 °C above room temperature. A wide range of accessories also allows you to modify these ovens for your specific process requirements.

Standard Equipment:

Every KTR oven includes a comprehensive set of features as standard:

• “Made in Germany” Quality: Engineered for industrial drying, sterilizing, and warm storing.
• Max Temperature: 260 °C.
• High Uniformity: Horizontal forced air circulation provides uniformity better than +/- 5 °C (as per DIN 17052-1).
• High Air Exchange: Ensures fast and efficient drying processes.
• Stainless Steel Interior: The chamber is made of 1.4301 (304) stainless steel, which is rust-resistant and easy to clean.
• Removable Grids: Includes multiple removable grids for charging in layers (see table for quantity).
• Robust Doors: Features large double-wing doors for models KTR 2300 and larger.
• RCF-Free Insulation: Nabertherm uses only high-quality, non-carcinogenic insulation materials.
• Venting System: An infinitely adjustable exhaust at the rear wall, which you can operate from the front.
• Standard Safety Feature: Includes an over-temperature limiter with an adjustable cutout temperature to protect the oven and load.
• Advanced Controller: Comes standard with the B500 controller (5 programs, 4 segments) with a clear touch-screen display.
• Data & Software: Includes NTLog Basic for USB data recording, plus freeware NTEdit (Excel) and NTGraph for PC, and the MyNabertherm App for mobile monitoring.
• Mobile Models: Models TR 800 and TR 1050 come standard with transport castors.

You can upgrade your Nabertherm KTR Chamber Oven to a fully customized process solution for your most demanding applications, including clean room production.

Available Options & Accessories:

• Heating Upgrade: You can order all models with an optional Tmax of 300 °C.
• Gas Firing: In addition, you can equip models with direct or indirect gas-firing instead of electrical heating.
• Advanced Cooling: An optional fan system provides for faster cooling, with manual or motorized control of the exhaust flaps.
• Advanced Control:
  • Variable speed control for the air circulation fan (recommended for light or sensitive charges).
  • Programmed opening and closing of exhaust air flaps.
  • Process control and documentation via VCD software package or Nabertherm Control Center (NCC).
• Clean Room Design: We also offer a full upgrade package to meet the stringent quality requirements for clean room heat treatment processes.
• Chamber Modifications:
  • A base frame for charging via a charging forklift.
  • An additional door in the back for charging from both sides or for use as a pass-through lock.
  • An observation window and furnace chamber lighting.
  • Rotating systems (e.g., for tempering processes).
• AMS/FDA Compliance: Upgrades are available to meet the stringent quality requirements of AMS2750H or FDA.

Related Products:

These ovens are part of our complete range of Nabertherm laboratory products. For smaller, bench-top ovens, see our TR Series Ovens.

The Nabertherm KTR Series is available in 18 models, from 1000L to 22500L, all featuring a Tmax of 260 °C and high-performance forced air circulation.

Note: Heating power may be higher depending on furnace design and options. Outer dimensions may vary with options.
