High-Temperature Bottom Loading Furnaces with molybdenum disilicide heating elements and fiber insulation up to 1650 °C
The Nabertherm LHT .. LB Speed is a “Made in Germany” high-temperature furnace (1650 °C) with a motorized bottom-loading table for easy charging. It features durable MoSi₂ heating elements, all-around heating for high uniformity, and a P580 controller as standard. Ideal for technical ceramics.
The Nabertherm LHT .. LB Speed series is a “Made in Germany” high-temperature furnace that is exceptionally easy to charge. Its key feature is the **electrically driven lifting table**, which allows you to build your charge on the table and then raise it precisely into the furnace with the push of a button.
The furnace provides outstanding temperature uniformity thanks to its **all-around heating** (3-sided or 4-sided, depending on the model). Furthermore, high-quality Molybdenum Disilicide (MoSi₂) heating elements offer very good protection against chemical interaction between your charge and the elements, ensuring a long service life.
Standard Equipment:
Every LHT .. LB Speed furnace includes these premium “Made in Germany” features:
- Max Temperature: 1650 °C.

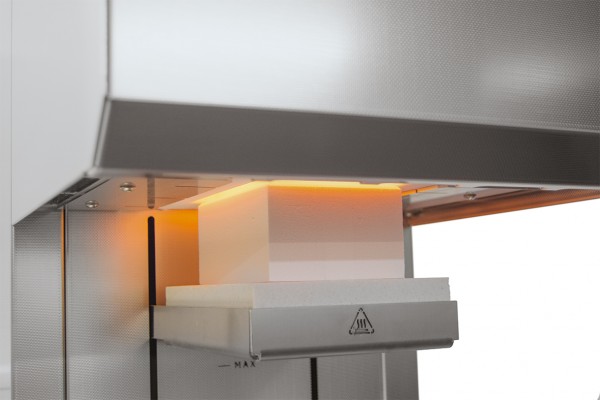

- Motorized Bottom-Loading Table: A precise, motorized toothed belt drive opens or closes the table in approximately 30 seconds.
- All-Around Heating: Provides very good temperature uniformity (3-sided for LHT 02/17 LB Speed, 4-sided for LHT 01/17 LB Speed).
- MoSi₂ Heating Elements: High-quality, durable heating elements with excellent protection against chemical interaction.
- RCF-Free Insulation: Exclusive use of high-quality, non-carcinogenic insulation materials.
- Advanced Controller: Comes standard with the powerful **P580 controller** (50 programs, 40 segments each).
- Precision Control: High-quality Type S thermocouple.
- Venting System: Includes an exhaust air vent in the roof.
- Data Recording: Includes NTLog Basic for recording process data via a USB flash drive.
You can upgrade your Nabertherm LHT .. LB Speed furnace with several high-performance options to match your specific process needs.
Available Options & Accessories:
- Over-Temperature Limiter: A critical safety feature (thermal protection class 2) with an adjustable cutout temperature to protect the furnace and your valuable load.
- High-Speed Table: Reduces the motorized table’s opening time from 30 seconds down to just 10 seconds.

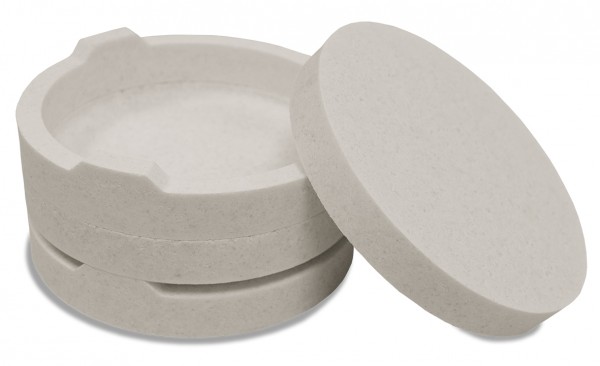

- Stackable Saggars: We offer stackable saggars for loading in up to two or three levels (depending on the model), which is ideal for sintering dental ceramics.
- Adjustable Air Inlet: An optional air inlet port through the floor of the furnace.
- Process Control Software: Integrate your furnace with the powerful VCD software package for comprehensive, PC-based process control, monitoring, and documentation.
Related Products:
These furnaces are part of our complete range of Nabertherm laboratory products. For a tabletop high-temperature furnace, see our LHT Series (1800 °C).
The Nabertherm LHT .. LB Speed Series is available in two compact, high-performance models, both with a Tmax of 1650 °C.
LHT .. LB Speed Model Specifications
| Model | Tmax (°C) | Inner (w x d x h) mm | Charging Area (w x d) mm | Volume (L) | Outer (W x D x H) mm | Load (kW) | Electrical | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| LHT 01/17 LB Speed | 1650 | 75 x 110 x 60 | 95 x 130 | 1 | 350 x 590 x 695 | 2.9 | 1-Phase | 45 |
| LHT 02/17 LB Speed | 1650 | Ø 115 x 140 | 135 x 135 | 2 | 390 x 590 x 785 | 3.3 | 1-Phase | 55 |
Note: Outer dimensions may vary with additional equipment. Charging area corresponds to charge saggars with spacer.
