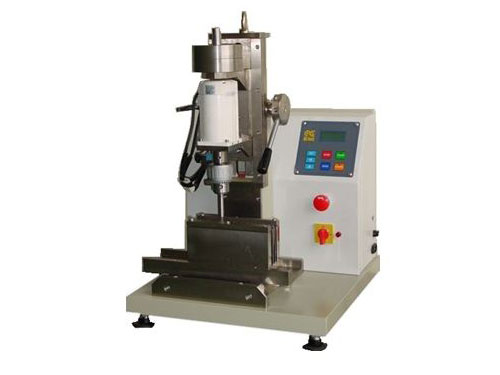

Cometech YY-S20 Screw Penetrator | Self-Tapping & Drilling Screw Penetration Tester | 50–5000 RPM | Servo Motor
- Dedicated tester for evaluating the penetration ability of self-tapping screws and self-drilling screws — iron plate is clamped on the lower fixture; set the rotation speed and axial load, then start: the screw rotates and penetrates through the steel plate while the machine records penetration time.
- Load: 30 LB (or as indicated); torque force: 3–30 kg·cm; speed: 50–5000 RPM; max screw length: 75mm; motor: servo motor.
- Compatible with optional software for data acquisition and analysis — outputs penetration time and torque curve for engineering evaluation.
- Industry: Metal; application: screw quality control and fastener performance testing.
Interested?
Request a quote for this product
Overview
The Cometech YY-S20 Screw Penetrator is purpose-built for testing the penetration performance of self-tapping and self-drilling screws against steel plate substrates.
The operator clamps the target iron plate on the lower fixture, programs the axial load and rotation speed via the servo-motor control panel, and initiates the test — the screw rotates and drives itself through the plate while the machine captures the total penetration time and torque data.
Optional data acquisition software enables digital recording and curve analysis for R&D and production quality control.
Key Features
- Servo motor drive — stable, precise RPM control from 50 to 5000 RPM; closely replicates real-world fastening conditions.
- Wide torque measurement range: 3–30 kg·cm — suitable for a broad range of screw diameters and materials.
- Axial load: 30 LB (or custom-specified) — fixed downward load simulates actual assembly pressure.
- Max screw length: 75mm — covers most standard self-tapping and self-drilling fastener sizes.
- Penetration time as primary evaluation metric — simple, objective pass/fail measurement criterion.
- Optional software for data acquisition and torque/time curve analysis.
Full Specifications
| Model | YY-S20 |
|---|---|
| Load | 30 LB (or as indicated / custom) |
| Torque force | 3–30 kg·cm |
| Motor | Servo motor |
| Speed | 50–5000 RPM |
| Max screw length | 75 mm |
| Data output | Penetration time; optional software for data acquisition & analysis |
| Industries | Metal |
