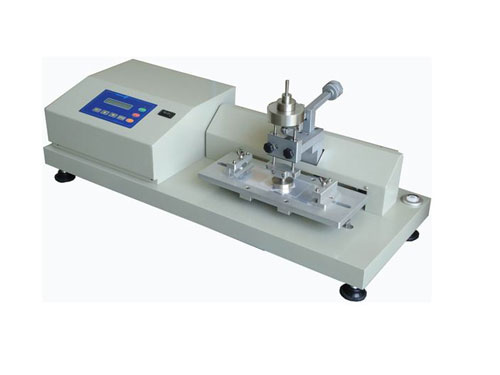

Cometech WD-M013 Optical Film Abrasion Tester | 50–2000g Load, 10–100 mm/s, Ø10/30/50mm Heads, 9,999,999 Cycles
- Light-load friction and abrasion tester for optical film, textile color fastness, and coating/printing adhesion — specimen is placed on a movable platform; abrasion head applies a defined load and moves back and forth at a set speed and stroke.
- Test load settable: 50–2000g (abrasion head zeroes out its own weight; only the set load is applied to specimen); speed: 10–100 mm/s; stroke: 10–120mm adjustable.
- 3 friction heads included: Ø10mm, Ø30mm, Ø50mm — suitable for different specimen sizes and test standards.
- Test count: 1–9,999,999 cycles with automatic stop; dimensions: 94×35×40 cm; weight: 66 kg; power: 100–240V, 50/60Hz.
Interested?
Request a quote for this product
Overview
Cometech WD-M013 Optical Film Abrasion Tester is designed for light-load friction testing on surface-treated optical films, textile color fastness evaluation, and print/coating adhesion testing.
The specimen is placed on a movable reciprocating platform; the abrasion head is designed with a tare/zero function that cancels out its own weight so that only the operator-set test load is applied to the specimen surface — ensuring accurate, reproducible friction force.
Test speed (10–100 mm/s), stroke (10–120mm), load (50–2000g), and test cycle count (up to 9,999,999) are all independently settable, with automatic stop at the programmed cycle count.
Key Features
- Abrasion head tare/zero function — cancels head self-weight; only the programmed load contacts the specimen.
- Wide load range: 50–2000g — covers both ultra-light optical film tests and heavier coating adhesion evaluations.
- 3 friction head sizes included: Ø10mm, Ø30mm, Ø50mm — interchangeable per test requirement.
- Adjustable speed (10–100 mm/s), stroke (10–120mm), and cycle count (1–9,999,999).
- Automatic stop at preset test count — unattended long-run testing.
- Applications: optical film surface treatment testing; textile color fastness; baked enamel / printed coating adhesion.
Full Specifications
| Model | WD-M013 |
|---|---|
| Weight load |
10g×2, 20g×2, 30g×1, 50g×2, 100g×2, 200g×2, 300g×1, 500g×2, 1000g×2 Test load range: 50–2000g (abrasion head zeroes own weight) |
| Test speed | 10–100 mm/s |
| Stroke | 10–120 mm (adjustable) |
| Test count | 1–9,999,999 times (automatic stop at preset count) |
| Friction heads (accessories) | Ø10mm × 1, Ø30mm × 1, Ø50mm × 1 |
| Dimension | 94 × 35 × 40 cm |
| Weight | 66 kg |
| Power | 100–240V, 50/60Hz |
| Industries | Electronics, Optics |
