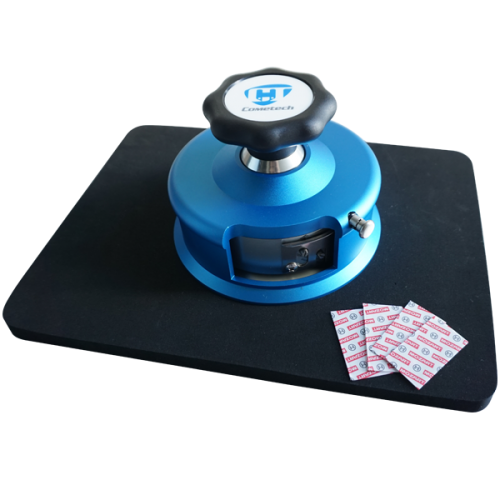

Cometech QC-PS Circular Sample Cutter | 100 cm² (Ø113 mm) GSM / Unit-Weight Sample Preparation
- Circular sample cutter to quickly prepare 100 cm² specimens (Ø113 mm) for unit-weight / grammage measurements.
- Requires a balance with minimum reading 0.01 g for specimen unit-weight measurement.
- Cutting thickness: around 5 mm (max).
- Works with textiles (woven/nonwoven/knitted), carpets, plastic film, styrofoam, paper, and thin wooden sheets.
- Compact and portable: 17 × 17 × 13 cm, 2 kg.
Interested?
Request a quote for this product
Overview
Cometech QC-PS Circular Sample Cutter is used to cut standardized circular specimens with an area of 100 cm² for unit-weight (grammage) or similar mass-per-area evaluations.
Because the specimen area is fixed, users can weigh the cut sample and calculate unit weight consistently, provided the balance has a minimum reading of 0.01 g.
It supports a wide range of sheet materials (textiles, films, foams, paper, thin boards), making it a practical sample-preparation tool for routine QC and lab testing.
Technical Specifications
Standards (as listed)
- ISO 3801.
- ASTM D3776.
- GB/T 4669.
- BS 2471.
Core specifications
| Model | QC-PS. |
|---|---|
| Sample area | 100 cm². |
| Sample diameter | Φ113 mm. |
| Cutting thickness | Around 5 mm (maximum). |
| Balance requirement | Minimum reading 0.01 g. |
| Dimensions (W×D×H) | 17 × 17 × 13 cm. |
| Machine weight | 2 kg. |
Applicable materials (examples)
- Textiles: woven cloth, non-woven, knitted fabrics; carpets.
- Plastic film, styrofoam.
- Paper and thin wooden sheets / thin plates.
Industries (as listed)
- Textile, Plastic, Paper.
Support materials (as listed)
- Cometech lists Test Video, Teaching material, SOP, and Test Case availability for this product.
