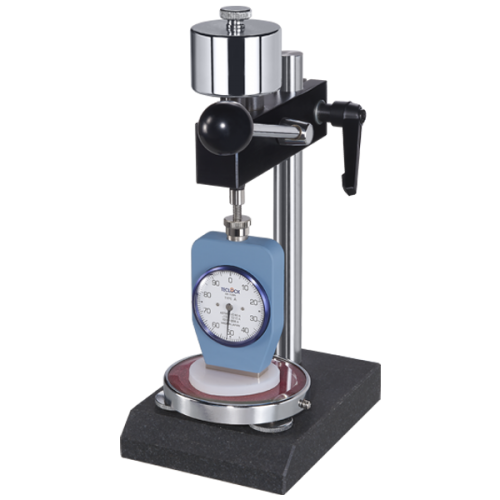

Cometech QC-GSA Stand Holder for Shore Durometer | 1kg & 5kg Loading | 100–450mm Stroke | ASTM D2240 / ISO 868 / JIS K7215

Overview

The Cometech QC-GSA Stand Holder is a dedicated loading stand designed to hold and guide any Shore durometer (hardness tester) during rubber and plastic hardness measurements per ASTM D2240, ISO 868, DIN 53505, and JIS K7215 standards.
When measuring with a hand-held durometer, operator-applied force varies between tests and between operators — the QC-GSA eliminates this by applying a fixed, standard load (1 kg or 5 kg) at a controlled descent, ensuring the indenter contacts the specimen flat and at the correct force every time.
The test procedure requires pressing the specimen flat against the Ø105mm test bench and recording the peak reading at first contact, or setting a fixed dwell time, then averaging 5–10 measurement positions across the specimen to obtain a representative hardness value.

Key Features

• Eliminates hand-pressure variation — fixed 1 kg or 5 kg loading weight applies consistent, standard-compliant contact force.
• Adjustable stroke range: 100–450mm — accommodates different durometer sizes and specimen heights.
• Ø105mm test bench diameter — provides stable, flat support for rubber sheets, plastic plaques, and soft material specimens.
• M6 tooth hole (or custom-appointed) — compatible with Cometech Shore A, C, and D durometers and most third-party durometer brands.
• Conforms to ASTM D2240, ISO 868, DIN 53505, JIS K7215-1992, JIS S6050 — meets all major Shore hardness test standards.
• 4 kg optional loading weight — adds a third load option for non-standard or custom test requirements.
• Compact and lightweight (4.6 kg) — easy to position on the lab bench alongside the hardness tester.
