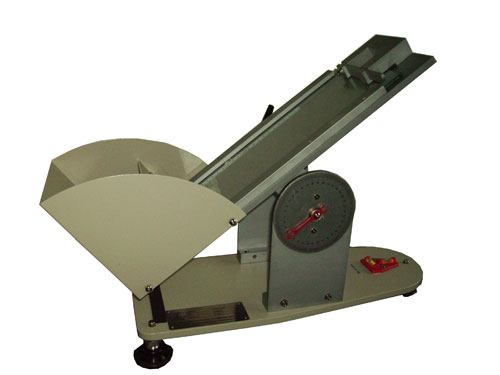

Cometech QC-805 / QC-805A Tape Initial Adhesion Tester | Rolling Ball Tack, 30° Incline, PSTC-6 / JIS Z0237 / ASTM D3121
- Rolling ball tack tester for measuring the initial adhesion (tack) of pressure-sensitive adhesive tapes — releases steel balls down a 30° inclined panel onto the tape surface and evaluates the largest ball number that sticks within a given tape length.
- QC-805 is a single-set tester (fixed 30° angle); QC-805A is a multi-set unit (4 sets, adjustable 20°–40° angle) for higher-throughput testing.
- Steel balls No. 2–32 (SUS stainless steel); 100 mm run-up distance; conforms to PSTC-6, JIS Z0237, ASTM D3121, and GB/T 4852.
- Used alongside QC-801/802 holding power testers and QC-803 roller for a complete pressure-sensitive adhesive tape quality control workflow.
Interested?
Request a quote for this product
Overview
Cometech QC-805 / QC-805A Tape Initial Adhesion (Ball Tack) Tester measures the initial adhesion (tack) of pressure-sensitive adhesive tapes using the rolling ball method.
The tape is laid adhesive-side up on the inclined panel; a steel ball is released from the top of the ramp and rolls 100 mm down the run-up distance before contacting the adhesive surface.
The largest numbered ball (heaviest/largest diameter) that the tape can stop within a defined length is taken as the tape's tack value — a larger ball number indicates higher initial tack.
The QC-805A offers four test sets and an adjustable angle (20°–40°) for versatile adhesive characterization.
QC-805 vs QC-805A
| Feature | QC-805 (1 set) | QC-805A (4 sets) |
|---|---|---|
| Test sets | 1 | 4 (simultaneous) |
| Slope angle | Fixed 30° | 20°–40° adjustable |
| Steel balls | No. 2–32 (SUS) | No. 2–32 (SUS) |
| Run-up distance | 100 mm | 100 mm |
| Dimension | 20 × 26 × 15 cm | 55 × 30 × 30 cm |
| Weight | 3.5 kg | 35 kg |
| Power | Not required | Not required |
Standards
- PSTC-6
- JIS Z0237
- ASTM D3121
- GB/T 4852
Full Specifications — QC-805 (1 set)
| Model | QC-805 |
|---|---|
| Testing sets | 1 |
| Slope angle | 30° (fixed) |
| Run-up distance | 100 mm |
| Steel balls | No. 2–32 (SUS stainless steel) |
| Dimension | 20 × 26 × 15 cm |
| Weight | 3.5 kg |
| Power | Not required |
Full Specifications — QC-805A (4 sets)
| Model | QC-805A |
|---|---|
| Testing sets | 4 |
| Slope angle | 20°–40° adjustable |
| Run-up distance | 100 mm |
| Steel balls | No. 2–32 (SUS stainless steel) |
| Dimension | 55 × 30 × 30 cm |
| Weight | 35 kg |
| Power | Not required |
Support materials
- Test video, teaching material, SOP, and test case (availability depends on configuration and region).
