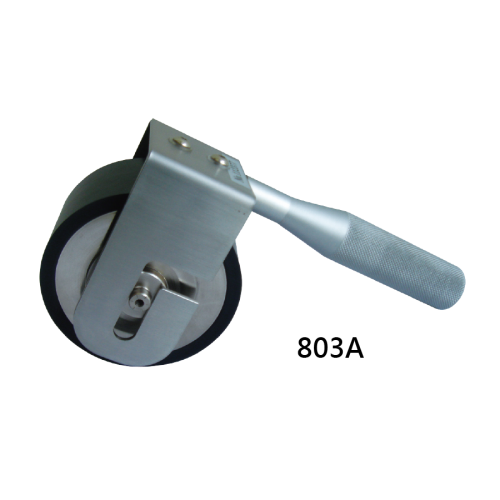

Cometech QC-803A Manual Roller / QC-803K & QC-803J Motor Roller | Standard Tape Specimen Preparation Roller (4.5 lb, 300 mm/min)
- Standard roller tool for preparing adhesive tape specimens before peel and holding power tests — applies a consistent 4.5 lb load at 300 mm/min to bond tape uniformly onto test surfaces.
- QC-803A is manual (hand-controlled); QC-803K and QC-803J are motor-driven with electronic control (press start, automatic back-and-forth rolling).
- Rubber-covered roller surface: 80°±5° Shore A hardness, 6 mm rubber coating, 45±1.5 mm width, 97±2.5 mm length — all to PSTC/ASTM/JIS standard dimensions.
- Used as a paired specimen-preparation step with holding power testers (QC-801/802 series) and peel force testers (QC-507M1F, QC-528M1F) for consistent, repeatable test results.
Interested?
Request a quote for this product
Overview
Cometech QC-803A / QC-803K / QC-803J Rollers are specimen-preparation tools for pressure-sensitive adhesive tape testing.
Before a peel adhesion or holding power test, the tape must be bonded onto the steel plate or substrate with a controlled, repeatable pressing force — which is exactly what this roller provides.
The QC-803A is a manual hand roller; the user holds it and rolls it back and forth once over the specimen at a steady pace.
The QC-803K and QC-803J are motor-driven: the user places the specimen under the roller and presses start, and the machine automatically completes one back-and-forth pass at 300 mm/min (or settable speed).
Manual vs Motor Models
| Feature | QC-803A (Manual) | QC-803K / QC-803J (Motor) |
|---|---|---|
| Control | Hand-controlled | Electronic motor-driven |
| Rolling speed | ~300 mm/min (manual) | 300 mm/min (or settable) |
| Operation | Hold roller, roll manually over specimen | Place specimen on track, press start |
| Dimension | 14 × 22 × 8 cm | 58 × 35 × 28 cm |
| Weight | 2.5 kg | 35 kg |
| Power | Not required | Single phase 100–240 V / 3 A |
Standards
- ASTM D3330
- ASTM D1000
- PSTC-7
- JIS Z0237
- JIS C2107
Full Specifications (QC-803A — Manual)
| Model | QC-803A |
|---|---|
| Roller weight | 4.5 lb |
| Roller surface | Rubber 80°±5° (Shore A); rubber coating 6 mm |
| Roll width | 45 ± 1.5 mm |
| Roll length | 97 ± 2.5 mm |
| Dimension | 14 × 22 × 8 cm |
| Weight | 2.5 kg |
| Power | Not required |
Full Specifications (QC-803K / QC-803J — Motor Type)
| Model | QC-803K / QC-803J |
|---|---|
| Roller weight | 4.5 lb |
| Roller surface | Rubber 80°±5° (Shore A); rubber coating 6 mm |
| Rolling speed | 300 mm/min (or settable depending on model) |
| Roll width | 45 ± 1.5 mm |
| Roll length | 97 ± 2.5 mm |
| Dimension | 58 × 35 × 28 cm |
| Weight | 35 kg |
| Power | Single phase 100–240 V / 3 A |
Support materials
- Test video, teaching material, SOP, and test case (availability depends on configuration and region).
