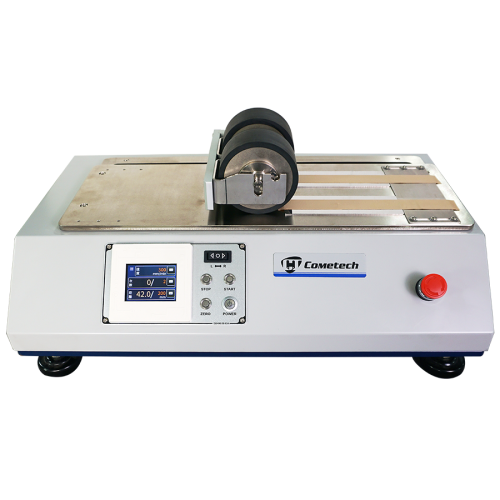

Cometech QC-803A Manual Roller / QC-803M Motor Type Roller | 4.5 lb, 50–1000 mm/min, 2.8" Touch Screen, ASTM D3330 / JIS Z0237 / PSTC-7
- Standard adhesive tape specimen preparation rollers — QC-803A is a manual hand roller; QC-803M is the motor-driven version with a 2.8-inch capacitive color touch screen for digital speed and pass control.
- QC-803M: rolling speed 50–1000 mm/min (digitally settable), up to 9999 rolling times, max rolling distance 300 mm — eliminates hand-pressure inconsistencies for repeatable test specimens.
- Standard 4.5 lb roller weight; 6 mm rubber-coated surface at Shore A hardness 80°±5°; roller width 45±1.5 mm, diameter 97±2.5 mm — meets PSTC, ASTM, JIS roller specifications.
- QC-803M supports dual roller operation (two rollers simultaneously); features emergency stop button for operator safety.
Interested?
Request a quote for this product
Overview
Cometech QC-803A / QC-803M are standard specimen-preparation rollers for pressure-sensitive adhesive tape testing.
Before peel adhesion or holding power tests, tape must be bonded to the steel plate with a controlled, consistent pressing force — the QC-803A does this manually while the QC-803M automates the process using a motor-driven roller with a 2.8-inch capacitive touch screen interface.
The motorized QC-803M digitally controls rolling speed (50–1000 mm/min), number of passes (up to 9999), and pasting distance (up to 300 mm), providing superior repeatability over manual application.
QC-803A vs QC-803M
| Feature | QC-803A (Manual) | QC-803M (Motor) |
|---|---|---|
| Control | Manual operation | 2.8" capacitive color touch screen + operation buttons |
| Rolling speed | Manual operation | 50–1000 mm/min (digitally settable) |
| Rolling times | N/A | Up to 9999 times |
| Stroke length | Manual operation | 0–300 mm |
| Roller weight | 4.5 lb | 4.5 lb (supports dual roller operation) |
| Roller width | 45 ± 1.5 mm | |
| Roller diameter | 97 ± 2.5 mm | |
| Roller material | Rubber-coated surface; 6 mm thickness; Shore A hardness 80°±5° | |
| Power | N/A | Single phase, 100–240V / 3A |
| Dimensions | 140 × 220 × 80 mm | 580 × 350 × 280 mm |
| Machine weight | 2.5 kg | 35 kg |
Standards
- JIS C2107
- JIS Z0237
- PSTC-7
- ASTM D3330
- ASTM D1000
Support materials
- Test video, teaching material, SOP, and test case (availability depends on configuration and region).
