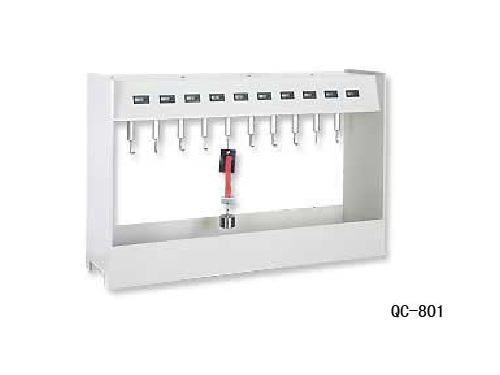

Cometech QC-801A Tape Holding Power Tester (Normal Type) | 10 Sets, ASTM D3654 / PSTC-7 / JISZ0237 / GB-T 4851
SHORT_DESC:
- Tape holding power (shear adhesion) tester for pressure-sensitive adhesive tapes — 10 simultaneous test sets for long-duration holding power measurement at room temperature.
- Specimen stick area: 1/2"×1" or 1"×1"; 2 kg roller applied during specimen attachment; 1 kg counterweight hangs from the lower end of the specimen on a vertical stainless steel plate.
- Electronic LCD timer (99999.9 min) automatically stops and locks the time when the tape detaches from the steel plate; if tape does not detach within the set time, measure the displacement distance.
- Stackable machine design saves lab space when running large numbers of simultaneous tests.
Interested?
Request a quote for this product
Overview
Cometech QC-801A Tape Holding Power Tester (Normal Type) measures the shear adhesion/holding power of pressure-sensitive adhesive tapes at room temperature.
The specimen is pressed onto a stainless steel plate using a standardized 2 kg roller, and then a 1 kg counterweight is suspended from the tape's lower end to apply a constant shear load.
The electronic timer runs automatically and locks the exact elapsed time when the tape detaches; if the tape holds beyond the test duration, the operator measures how far the tape has displaced on the plate.
With 10 test sets running simultaneously, the machine is designed for high-throughput QC and R&D tape testing.
Key Features
- 10 testing jigs for simultaneous long-duration tests.
- Automatic timer retains tape detachment time (LCD display, up to 99999.9 min).
- Steel plate and weights designed strictly to standard dimensions for data accuracy.
- Foam pad at weight fall point absorbs impact, protecting both machine and weights.
- Test module components made of aluminum alloy and stainless steel (SUS#304) for long service life.
- Stackable machine design — multiple units can be stacked to save space for large test batches.
Standards
- ASTM D3654
- PSTC-7 / PSTC-107
- JIS Z0237
- GB/T 4851
Full Specifications
| Model | QC-801A |
|---|---|
| Testing jigs | 10 sets |
| Weights |
1 kg × 10 pcs, material SUS#304 Weight: 1000 ± 5 g (including triangle hook weight) Other weight capacities available by specification |
| Steel plate | 50 × 75 mm (thickness 1.5 mm) |
| Timer | Electronic LCD display; 99999.9 minutes; automatic time lock when tape detaches |
| Dimension | 92 × 26 × 60 cm |
| Weight | 45 kg |
Support materials
- Test video, teaching material, SOP, and test case (availability depends on configuration and region).
