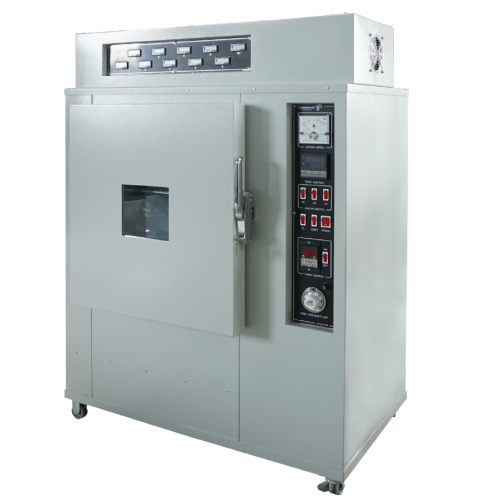

Cometech QC-802A Tape Holding Power Tester (Heating Type) | 10 Sets, Room Temp–200°C, PID Control, ASTM D3654 / PSTC-7
- High-temperature tape holding power tester — tests pressure-sensitive adhesive tape shear adhesion retention under controlled heating from room temperature up to 200°C.
- Microcomputer PID automatic temperature control; 0.1°C display resolution; ±0.3°C accuracy; 10 simultaneous test jigs.
- 1 kg SUS#304 stainless steel counterweights (×10); automatic LCD timer (up to 999999.9 min) locks time when tape detaches from the steel plate.
- Same test procedure as normal-type (QC-801A) but performed inside a controlled-temperature heating chamber for elevated-temperature adhesion performance evaluation.
Interested?
Request a quote for this product
Overview
Cometech QC-802A Tape Holding Power Tester (Heating Type) is the high-temperature version of the QC-801 series, designed for testing tape holding power (shear adhesion) under elevated temperature conditions up to 200°C.
The operator first sets the required temperature, then sticks a 1-inch-wide tape strip onto a stainless steel plate inside the heated chamber using a 4.5 lb standard roller at 300 mm/min (one pass back and forth).
The steel plate is hung inside the tester with the specified 1 kg counterweight attached; when the tape detaches from the plate, the digital LCD timer stops and records the retention time automatically.
Key Features
- Temperature range: room temperature to 200°C — suitable for evaluating adhesive performance in high-temperature service environments.
- Microcomputer PID automatic temperature control with 0.1°C display and ±0.3°C precision.
- 10 testing jigs for simultaneous long-duration elevated-temperature tests.
- Digital LCD timer with automatic time retention on tape detachment (up to 999999.9 min).
- Steel plate and weight designed strictly to standard dimensions for data accuracy.
- Long-term testing capability for quality control and R&D of specialty adhesive tapes.
Standards
- ASTM D3654
- PSTC-7 / PSTC-107
- JIS Z0237
- GB/T 4851
Full Specifications
| Model | QC-802A |
|---|---|
| Temperature range | Room temperature ~ 200°C; Microcomputer PID automatic temperature control; 0.1°C display; ±0.3°C accuracy |
| Testing jigs | 10 sets |
| Weights | 1 kg × 10 pcs; material SUS#304 stainless steel Weight: 1000 g ± 5 g (capacity can be specified) |
| Timer | Digital LCD display; 999999.9 minutes; automatic time retention on tape detachment |
| Stainless steel plate | 50 × 75 mm (thickness 1.5 mm) |
| Power | Single phase 220 V, 21 A |
| Dimension (overall) | 100 × 50 × 92 cm |
| Inner chamber size | 59 × 50 × 30 cm |
| Weight | 180 kg |
Support materials
- Test video, teaching material, SOP, and test case (availability depends on configuration and region).
