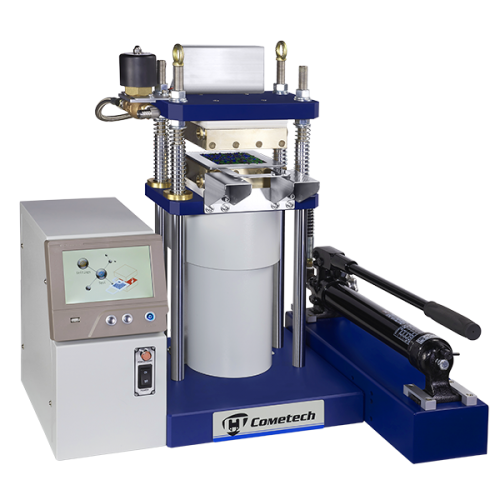

Cometech QC-677T Manual Hot Press – Desktop Thermo Molding / Sample Preparation Press (20 / 50 / 100 kN)
QC-677T is a compact desktop manual hot press designed to provide stable pressure and temperature for hot press molding of plastic, rubber, and other materials for sample preparation, color-matching plates, and specimen flattening.
- Capacities (desktop): 20 / 50 / 100 kN.
- Heating plates: 150 × 150 mm, with adjustable parallelism via four-column structure.
- Temperature: 50–300°C (400°C model optional) with circulation cooling for upper/lower heating plates.
Request a quote for this product
Overview
The Cometech QC‑677T Manual Hot Press uses two independent heating plates and a split-type hydraulic pump so users can clamp the platens under controlled pressure during molding.
The four-column construction improves rigidity and allows heating plate parallelism adjustment to support better compression flatness and repeatable specimen quality.
An F1C controller provides a simple setup interface and clear display of values such as temperature and time so operators can monitor the molding process and reduce human error.
Explore more on PTS Lab:
Cometech |
All applications
Technical specification
| Model | QC‑677T (Desktop) |
|---|---|
| Capacity | 20 / 50 / 100 kN |
| Heating plate area | 150 × 150 mm |
| Distance between heating plates | 0–80 mm |
| Temperature range | 50–300°C (400°C model optional) |
| Heating rate | Room temperature → 250°C in 15 min |
| Cooling method | Circulation cooling for upper and lower heating plates |
| Temperature display error | ±1°C (above 300°C: ±3°C) |
| Heating plate uniformity | 200–300°C: ±2°C; under 200°C: ±1.5°C |
| Force range | Maximum pressure range 10–90% |
| Force resolution | 0.1 kN |
| Operation method | Pressurizing with a manual hand pump |
| Real-time display | Force, stress, upper & lower heating plate temperature, graph, time |
| Standard accessory | 100 × 100 × 2 mm mold |
| Power consumption | 20 A |
| Power supply | Single phase 220 V / 50 or 60 Hz |
Dimensions by capacity
| Capacity | Width (W) | Depth (D) | Height (H) |
|---|---|---|---|
| 20 kN | 690 mm | 350 mm | 750 mm |
| 50 kN | 725 mm | 650 mm | 725 mm |
| 100 kN | 725 mm | 650 mm | 725 mm |
Typical applications
- Preparing development samples and color-matching plates.
- Flattening specimens and producing molded sample plates for downstream testing.
- Hot press molding for plastics, rubber, and other materials (with suitable molds/fixtures).
