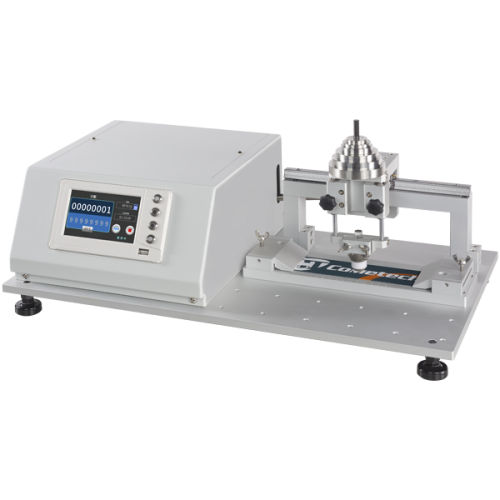

Cometech QC-622H Surface Hardness Abrasion Tester | Coating & Printing Wear Resistance Testing
- Reciprocating abrasion tester for evaluating surface treatment durability (paint, plating, coating, dyeing, finishing).
- Uses multiple abrasion media/heads (cotton, sandpaper, steel wool, pencil/eraser type) to simulate real wear and discoloration.
- Adjustable abrasion distance and speed with programmable cycle count and auto-stop at completion.
- Weight sets included for load control; quick clamping area for efficient specimen setup.
- Suitable for plastics, electronics, textiles, and printing-related surface testing.
Interested?
Request a quote for this product
Overview
The Cometech QC-622H Surface Hardness Abrasion Tester is designed to measure the durability of surface treatments such as painting, plating, coating, dyeing, and finishing.
It supports abrasion evaluation using different wear media/heads (e.g., cotton, sand paper, steel wool, eraser) to assess wear condition and surface appearance changes.
Test conditions can be configured to match different standards or internal methods, including speed, stroke (abrasion distance), abrasion head selection, load, and specimen appearance requirements.
Technical Specifications
| Model | QC-622H. |
|---|---|
| Applicable industries (examples) | Plastic, Electronic, Textile, Print. |
| Weight set | 25 g ×1, 50 g ×1, 100 g ×1, 200 g ×1, 300 g ×1, 500 g ×1, 1000 g ×1 (basic weight: 200 g). |
| Abrasion distance (stroke) | 10–100 mm adjustable (manual adjustment). |
| Load limit note | When test stroke is under 50 mm, maximum load is 8 kg. |
| Abrasion heads (options) | Φ6.35 mm sand paper abrasion head grip; Φ16 mm cotton abrasion head; Φ16 mm steel wool abrasion head; Ø6.8 mm pencil/eraser abrasion head (without pencil/eraser), customized types available. |
| Sample size | Width 20–200 mm; thickness max. 50 mm. |
| Speed & cycle count | Speed: 1–120 CPM (precisely set); cycles: 1–99,999,999; auto-stop after test completion. |
| Power | 100–240 V, 50/60 Hz. |
| Dimensions | 65 × 35 × 40 cm. |
| Weight | 46 kg. |
Features & Functions
- Multi-media abrasion simulation: supports cotton, sandpaper, steel wool, and pencil/eraser-type abrasion to match real-world wear modes.
- Condition-setting flexibility: configure speed, abrasion distance (stroke), load/weights, and abrasion head type to match various requirements.
- Efficient operation: quick clamping area plus built-in stroke adjustment function (as shown in the product sheet image).
- Repeatable test runs: precise CPM speed setting, very large cycle-count range, and auto-stop when complete.
Configuration & Options
- Choose model by temperature range and environment: QC-652B (50–300°C), QC-652C (50–400°C), and corrosion versions QC-652D/E.
- MVR mechanism (for B method) is available as an optional add-on.
- High-MI material block mechanism is available to help prevent plastic flow during preheating for high-flow plastics.
Documents & Downloads
Applications & Case Studies
- Melt flow index testing for thermoplastics for QC/QA, material comparison, and process control where ASTM/ISO reporting is required.
- Industries listed for this series include plastic, medical product, and mask-related materials.
Support & Compatibility
- Flash drive (USB) saving/output is supported for test data handling.
