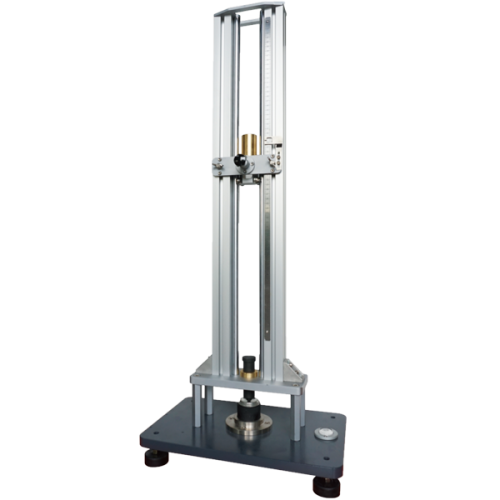

ometech QC-641 DUPONT Impact Tester | Paint & Coating Adhesion, 300–1000 g, 50–500 mm, ASTM D2794 / JIS K5400 / ISO 6272
- Used to test impact resistance and adhesion of paint and coating on specimen surfaces using a free-falling weighted impact head.
- Drop height standard range: 50–500 mm (optional 50–1000 mm); drop weights: 300 g, 500 g, 800 g, 1000 g (via combined base + supplemental weights).
- Five impact head sizes available (radius 1/2", 1/4", 3/16", 1/8", 1/16"); specimen station also selectable.
- Test 3 or more specimens continuously, then observe after 1 hour to check if the paint/coating has cracked.
Interested?
Request a quote for this product
Overview
Cometech QC-641 DUPONT Impact Tester evaluates paint and coating adhesion by dropping a weighted impact head from a set height onto a coated specimen surface, then inspecting the surface for cracking.
The test involves setting the designated weight and height, allowing the impact head to free-fall onto the specimen, and then leaving the tested specimens for at least one hour before observing whether cracks appear in the coating.
Both the impact head size and the specimen station can be selected to match different paint and coating test requirements.
Key Features
- Selectable impact head radii: 1/2", 1/4", 3/16", 1/8", 1/16" — one of each included.
- Drop weight flexibility: base weight 300 g + add-on 200 g or 500 g weights allow 300 g, 500 g, 800 g, and 1000 g test configurations.
- Standard drop height 50–500 mm; optional extended range 50–1000 mm.
- Variety of specimen stations selectable for different part shapes and sizes.
- Applied industries: plastic, paint, coating, surface treatment.
Standards
- ASTM D2794
- JIS K5400 / K5640
- ISO 6272
Full Specifications
| Model | QC-641 |
|---|---|
| Impact height (standard) | 50–500 mm |
| Impact height (optional) | 50–1000 mm |
| Impact weight | Base capacity: 300 g Add-on weights: 200 g × 1, 500 g × 1 Achievable test capacities: 300 g, 500 g, 800 g, 1000 g |
| Impact head (radius) | 1/2", 1/4", 3/16", 1/8", 1/16" — one set each |
| Dimension | 42×25×98 cm |
| Weight | 45 kg |
Support materials
- Test video, teaching material, SOP, and test case (availability depends on configuration and region).
