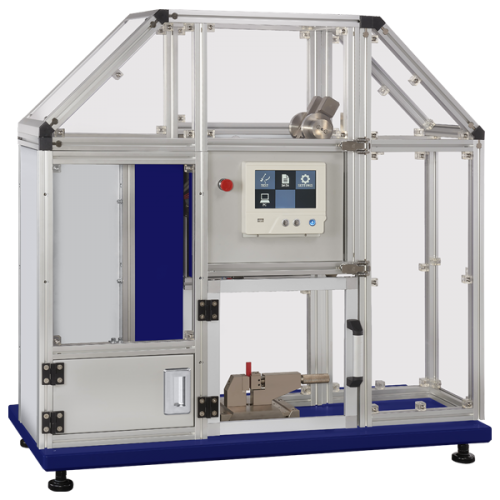

Cometech QC-639R/U Impact Tester (Computerized Type) | Izod & Charpy, Auto Lift/Release, 7” Touch Screen
Click to zoom
Main

Cometech QC-639R/U Impact Tester (Computerized Type) | Izod & Charpy, Auto Lift/Release, 7” Touch Screen

  • Computerized pendulum impact tester for measuring impact resistance of polymer materials using Izod and Charpy methods.
  • Automatic lifting and releasing of the impact hammer improves efficiency and operator safety.
  • Encoder angle detection calculates energy, with a built-in correction system to compensate energy loss caused by wind resistance/friction.
  • Optional PC software supports analysis functions, data recording, and report generation.
Interested?

Request a quote for this product

Overview

QC-639R/U is a computerized impact tester used to evaluate how polymer specimens absorb impact energy in a pendulum impact test.
It calculates absorbed energy based on the energy conversion relationship, and accuracy depends heavily on the pendulum hammer’s precision (impact speed and mass-center position).
The tester supports both Izod and Charpy methods by changing hammers and vises to match different ASTM/ISO test requirements.

Key Features

  • Automatic hammer lift & release for higher testing throughput and improved safety.
  • 7” PLC touch screen interface for operation and result viewing.
  • Encoder-based angle measurement for energy calculation; minimum display angle 0.05°.
  • Built-in correction system compensates for energy loss from wind resistance/friction.
  • Fast changeover of hammers/vises for Izod vs Charpy and for different standards.

Standards (as listed)

  • ISO 13802; DIN 53453; ASTM D256; ISO 180; ASTM D6110; ISO 179.
  • ASTM E23; ISO 148; EN 10045-1.

Specifications



Model QC-639R / QC-639U
Test method Izod, Charpy
Initial angle 150°
Test capacity (QC-639R) Izod 1–25 J;
ASTM Charpy 1–25 J;
ISO Charpy 1–5 J
Test capacity (QC-639U) Izod 1–50 J;
Charpy 1–50 J
Angle display Minimum display angle: 0.05°
Power supply 110–240 V / 5 A
Dimensions (QC-639R) Full cover: 110 × 50 × 110 cm; Half cover: 110 × 50 × 77 cm
Dimensions (QC-639U) Full cover: 110 × 50 × 117 cm; Half cover: 110 × 50 × 84 cm
Weight (QC-639R) Full cover: 330 kg; Half cover: 300 kg
Weight (QC-639U) Full cover: 400 kg; Half cover: 370 kg

Included & Optional

Included accessories

  • Hammer calibration report; Hex wrench set.

Optional accessories

  • Different capacity impact hammers and vises for different standards.
  • QC-640A impact specimen V-notcher.
  • Optional analysis software for PC (analysis/records/reports).
