Cometech QC-639C / QC-639D Mechanical Impact Tester – Pendulum Izod & Charpy Impact Resistance Tester (Mechanical Pointer Type)

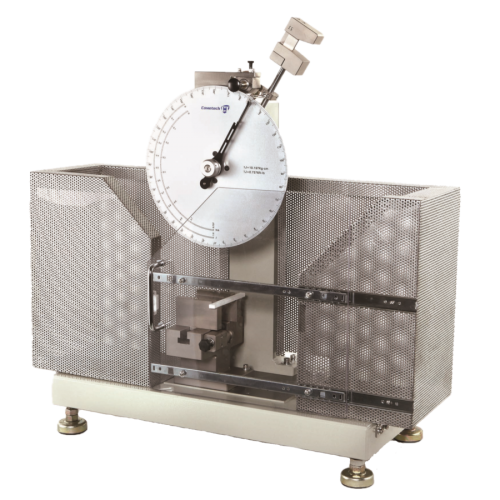

QC-639C/D is a mechanical (pointer) pendulum impact tester series for measuring impact resistance of polymer/plastic materials using Izod and Charpy methods, with dedicated software for calculation and correction of results.

  • Two models on the same platform: QC‑639C (up to 12 J) and QC‑639D (up to 25 J).
  • Pointer gauge records impact angle (initial angle 150°); energy is read from the gauge and processed by software.
  • Rapid hammer/vise changeover supports switching between Izod and Charpy to satisfy different ASTM/ISO methods.
Interested?

Request a quote for this product

Overview

The Cometech QC‑639 series measures absorbed impact energy of polymer specimens using pendulum energy conversion, where hammer precision (speed and mass position) can affect test accuracy.

Both QC‑639C and QC‑639D use a mechanical pointer to record the impact angle, and Cometech’s dedicated software supports calculating and correcting the test results.

Izod and Charpy are the two supported methods, and the machine is designed to change hammers and vises rapidly to meet different test methods and standards (ASTM & ISO).

Explore more on PTS Lab:
Cometech |
Mechanical testing equipment |
All applications

Models & capacities

Series QC‑639C / QC‑639D
Test methods Izod, Charpy
Initial impact angle 150°
QC‑639C capacity Izod 1–12 J; ASTM Charpy 1–12 J; ISO Charpy 1–5 J
QC‑639D capacity Izod 1–25 J; Charpy 1–25 J
Recommended accurate range 20–80% of full capacity
Minimum reading 1° (angle scale)

Key features

  • Mechanical pointer gauge for easy reading of impact angle and energy, with software-supported calibration/compensation and result correction.
  • Quick swapping of hammers and vises for Izod/Charpy setups and different standards.
  • Typical hammer capacities listed for the series include 1 J, 2.75 J, 5.5 J, 11 J and 25 J (selected based on model and application).
