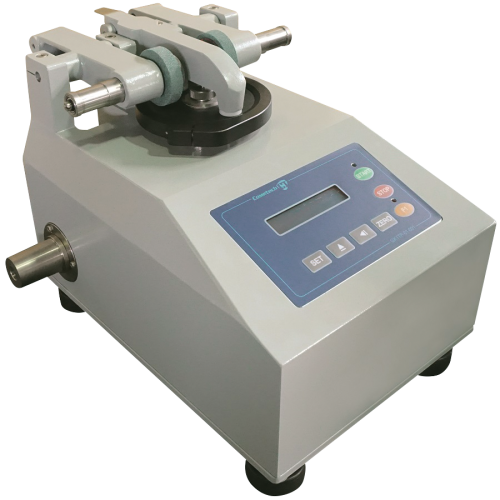

Cometech QC-619K TABER Abrasion Tester | 1–100 RPM, Dual Wheels + Vacuum Nozzles
- TABER abrasion tester for evaluating wear resistance of paper, textiles, plywood/panels, flooring, glass, rubber, and plastics.
- Uses a rotating specimen platform with two abrasive wheels and vacuum nozzles to remove abrasion dust during the test.
- Supports different load weights and wheel selections to match different materials and standards.
- Wear resistance can be evaluated by weight loss before/after test, visual inspection, or thickness change.
Interested?
Request a quote for this product
Overview
Cometech QC-619K TABER Abrasion Tester is designed to measure abrasion resistance of sheet and flat materials using a rotating specimen disk and two abrasive wheels. During the test, vacuum nozzles remove abrasion dust to help keep the contact condition stable. Results can be evaluated by measuring weight loss, observing surface wear, or measuring thickness change, depending on your test method.
Technical Specifications
Standards (common)
- ASTM D3884
- ASTM D4060
- ASTM D1044
- ISO 5470
Core specifications
| Model | QC-619K |
|---|---|
| Grinding wheel size | 2 inch diameter, 1/2 inch thickness |
| Distance between two wheels | 63.5 mm |
| Distance between wheel and center of tray | 38 mm |
| Rotary speed | 1–100 RPM (adjustable) |
| Load weights | 250 g, 750 g, 1000 g (stainless steel counterweights) |
| Counter | LCD display, 8 digit, auto-brake |
| Specimen thickness | 1–6 mm |
| Specimen size | Ø110 mm, center hole 7.5 mm |
| Dimensions (W × D × H) | 55 × 38 × 47 cm |
| Machine weight | 30 kg |
| Power supply | Single phase 110–240 V |
Included accessories
- Vacuum cleaner (1 set)
- Specimen cutter (1 pc)
- Wrench (1 pc)
- Sand paper (10 pcs)
Optional items
- Replaceable specimen holder for wet abrasion testing or other special tests.
