Cometech QC-619C TABER Abrasion Tester (Abrader) | ASTM D4060, ASTM D3884, ISO 5470-1
- Taber-type abrasion tester with specimen turntable, dual abrading wheels, and dual vacuum nozzles for debris removal during testing.
- Set revolutions/cycles, choose load weights, and run repeatable abrasion tests for QC/QA and R&D.
- Evaluate wear resistance by weight loss, thickness loss, and visual surface rating methods.
- Suitable for paper, textiles/cloth, plywood/panels, carpet, glass, rubber, plastics, and building materials.
- Conforms to common standards including ASTM D3884, ASTM D4060, ASTM D1044, ISO 5470 (and others listed).
Interested?
Request a quote for this product
Overview

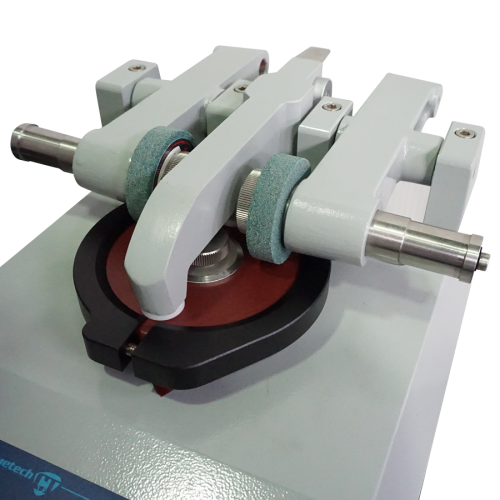

The Cometech QC-619C Abrasion Tester (TABER Abrader) is built around a specimen clamping disk (turntable), two abrading wheels, and two vacuum nozzles that remove abrasion dust during the test.
Operators can select load weights and set the test revolutions/cycles to generate controlled, repeatable wear tracks on the specimen surface.
The instrument supports common wear evaluation approaches including mass loss (weight difference), thickness loss, and visual rating of surface damage.
Technical Specifications
Conforming standards
ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799.
Core specifications
| Model (content) | QC-619C Abrasion Tester (TABER type). |
|---|---|
| Abrader structure | Specimen clamping disk + two grinding/abrading wheels + two vacuum nozzles/ports for dust removal. |
| Abrading wheels | Diameter 2 inch; thickness 1/2 inch (wheel diameter referenced as ~50 mm and width ~13 mm in description). |
| Turntable speed | 5–100 rpm ±2% adjustable (factory default 60 rpm). |
| Test load weights | 250 g, 500 g, 1000 g. |
| Counter / cycles | 1–99,999,999 cycles; auto-stop after reaching set count. |
| Specimen size | Ø110 mm; center hole Ø7.5 mm. |
| Specimen thickness | 1–6 mm (soft and rigid materials). |
| Power | Single phase 100–240 V, 50/60 Hz. |
| Dimensions | 55 × 38 × 47 cm. |
| Machine weight | 30 kg. |
| Applied industry | Rubber, plastics, textile/cloth, paper, construction material. |
Key features
- User-friendly touch screen: parameter setting (speed, cycles), one-touch reset, and real-time remaining time display.
- Stable speed control: designed with voltage regulation support to keep speed stable across regions with voltage fluctuation.
- Wide speed adjustment range to meet different standards and application needs.
- Jog mode (manual adjustment) for easier specimen positioning, installation, and removal.
- Consistent wear pattern design concept for uniform and repeatable abrasion tracks.
Accessories (shown)
- Accessory set shown includes gasket (stainless steel), specimen clamping nut, abrading wheel clamping nut, sandpaper, specimen cutter, weight mounts, wrench, and vacuum cleaner system.
- Documented accessories list includes: vacuum cleaner system (1), specimen cutter (1), wrench (1), sandpaper (10 sheets), specimen clamping frame (1).
Result evaluation methods (shown)
- Weight loss: evaluate wear resistance by weight loss before/after test.
- Thickness loss: evaluate wear resistance by thickness reduction.
- Visual rating: visually assess surface damage.
Grinding wheel selection reference (shown)
- Recommended wheels by specimen type are shown (examples): coatings CS-10/CS-17; flooring materials CS-17/H-18; plywood CS-32/CS-33; plastics H-18/H-22/CS-17; textiles (fabrics) H-18/H-22/CS-17.
