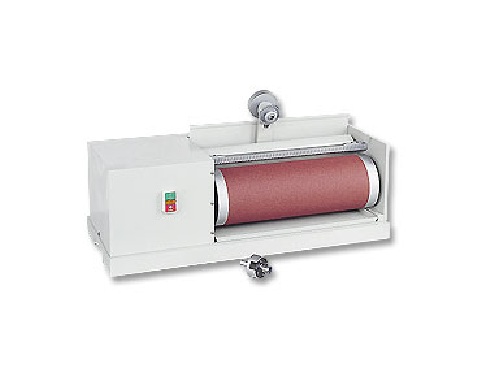

Cometech QC-618A DIN Abrasion Tester | DIN 53516 / ISO 4649 Rubber Abrasion Resistance
- DIN abrasion tester for elastic materials to measure abrasion resistance by volume/weight loss after controlled wear.
- Suitable for rubber, tires, conveyor belts, transmission belts, shoe soles, and soft synthetic leather.
- Uses Ø16 mm specimens pressed onto #60 sandpaper mounted on a Ø150 mm rotating drum.
- Fixed drum speed around 40 rpm; test ends at 40 m abrasion distance for repeatable results.
- Includes key consumables and accessories; additional consumables can be purchased.
Interested?
Request a quote for this product
Overview
Cometech QC-618A DIN Abrasion Tester is designed for abrasion testing of elastic materials such as rubber, tires, belts, shoe soles, and soft synthetic leather.
A Ø16 mm wear-area specimen is loaded against #60 sandpaper on a drum, and abrasion resistance is evaluated by measuring loss after the defined wear distance.
The drum rotates at about 40 rpm and the tester stops when the abrasion distance reaches 40 m, supporting consistent, standards-based comparison between materials.
Technical Specifications
Standards
DIN 53516, ISO 4649, GB/T 9867, SATRA TM174.
Core specifications
| Model | QC-618A DIN Abrasion Tester. |
|---|---|
| Suitable materials | Rubber, tires, conveyor belts, transmission belts, shoe soles, soft synthetic leather. |
| Sample size | Diameter 16 mm, height 6–16 mm. |
| Test load / weight sets | 2.5 N, 5 N (test loads listed: 2.5 N, 5 N, 7.5 N, 10 N). |
| Drum | Diameter 150 mm; perimeter 471 mm; rotary speed 40 ±5% rpm. |
| Sandpaper | #60 (or as indicated). |
| Sample movement | 4.2 mm per revolution. |
| Stroke / abrasion distance | 40 m. |
| Sample tilt angle | 3°. |
| Power | Single phase, 100–240 V. |
| Dimensions | 81 × 32 × 36 cm. |
| Machine weight | 90 kg. |
Included accessories & consumables
- Accessories listed include sandpaper, DIN standard rubber, specimen cutter, aluminum pre-rub (1 pc), brass brush (1 pc), and a benchtop drill press (1 pc).
- Cometech notes DIN standard rubber, #60 sandpaper (5 pcs), and a specimen cutter set are included as consumables and can be purchased additionally when needed.
Support & documentation
- Cometech indicates “Test Video”, “Teaching material”, “SOP”, and “Test Case” availability on the product page.
- Cometech describes engineer training and warranty-period maintenance, and states parts can be obtained for maintenance within 10 years via its ERP warehousing system.
