Cometech QC-603A / QC-603C Pneumatic Specimen Punch | Specimen Cutting & Lamination
- Pneumatic specimen punch for fast cutting of standard test samples from rubber, plastics, paper, leather and textiles.
- QC-603A for soft materials, QC-603C air-hydraulic version with higher output for rigid and thick specimens.
- Dual safety-switch design, compact footprint and easy, power-saving operation.
- Supports interchangeable cutter types (thick, thin, precision) and optional CE cover and pressure time-delay valve.
Interested?
Request a quote for this product
Overview

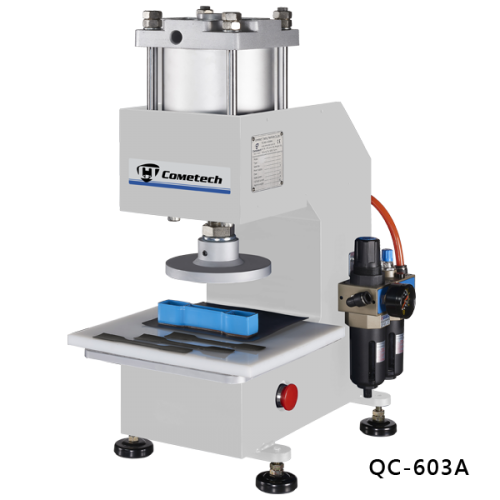

Cometech QC-603A / QC-603C Pneumatic Specimen Punch machines are designed for rapid cutting of standard test specimens using various interchangeable cutters.
QC-603A is pneumatically driven and optimized for soft materials such as rubber, soft plastics, leather and paper, while QC-603C adds an air‑hydraulic conversion system to significantly increase output for rigid plastics, fabrics and thick, tough specimens.
Both models can be used for specimen cutting and lamination, providing a compact, easy‑to‑operate solution for preparing samples for tensile, tear, elongation and other mechanical tests.
Technical Specifications
Models & materials
| Model | QC-603A (pneumatic specimen punch), QC-603C (air‑hydraulic specimen punch). |
|---|---|
| Applicable materials | QC-603A: rubber, soft plastics (hardness below Shore A 90), leather, etc.; QC-603C: rigid plastics (hardness above Shore A 90), fabric, very tough or thick specimens. |
| Compression platen size | QC-603A: upper platen Ø145 mm (optional square upper plate 350 × 160 mm as per QC-603E option), lower platen 260 × 230 mm; QC-603C: upper platen 350 × 160 mm, lower platen 350 × 280 mm. |
| Stroke | QC-603A: 100 mm; QC-603C: 125 mm. |
| Output force | QC-603A: 900 kg; QC-603C: 3000 kg. |
| Power source | Pneumatic, 3–6 kg/cm² air pressure required (compressor not included). |
| Standard accessory | One cutting board (cushion plate). |
| Dimensions (W × D × H) | QC-603A: 36 × 43 × 69 cm; QC-603C: 44 × 50 × 107 cm. |
| Machine weight | QC-603A: 55 kg; QC-603C: 80 kg. |
| Industry focus | Rubber, plastic, textile. |
Key features & safety
- Pneumatic drive with **dual safety switches** to reduce operator risk during cutting.
- Higher-output QC-603C air‑hydraulic system enables cutting of harder plastics, fabrics and thick, resilient specimens.
- Designed for power-saving and time-saving operation, with compact, bench‑top structure and user‑friendly controls.
- Capable of both specimen cutting and lamination, supporting a wide range of lab workflows.
Cutters & configuration (optional)
- Cutter types (optional, sizes customizable):
- Thick cutter: folded sheet metal blade with reinforced walls for durable cutting of tough materials (e.g., fabric, leather).
- Thin cutter: laser‑cut for enhanced dimensional accuracy, suited for slicing softer materials.
- Precision cutter: heat‑treated and ground for superior strength and high-accuracy precision cutting.
- Additional precise cutter shapes can be provided based on customer‑specified specimen geometry.
Optional accessories
- CE protective cover: encloses the cutting area and includes a sensing mechanism so the press cannot operate when the cover is not securely closed; complies with EU CE safety standards.
- Pressure time delay valve: controls timing of pressure application to protect the cutter edge and reduce risk of specimen damage.
