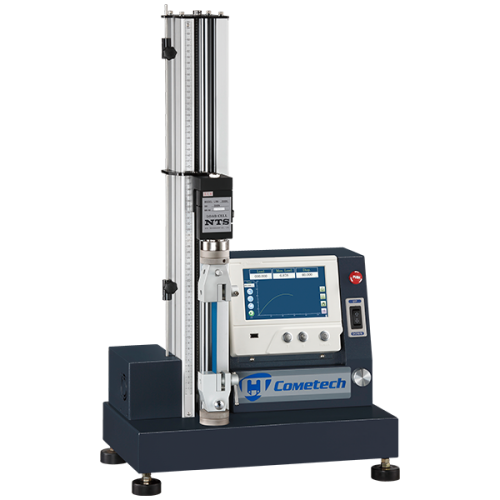

Cometech QC-528M1F Universal Testing Machine (500 N) – Computerized Tensile / Compression Tester
QC-528M1F is a compact, fully computerized universal testing machine for low‑force tensile, compression, bending and peel tests on small specimens up to 500 N.
- Max. capacity 500 N with 400 mm test stroke and 0.05 mm stroke resolution.
- Step‑motor drive with 1.0–600.0 mm/min speed range and high‑accuracy digital speed control.
- Data sampling up to 400 Hz, multi‑unit support, and RJ45 TCP/IP PC connection for M1F Windows software.
Request a quote for this product
Overview
The Cometech QC-528M1F Universal Materials Testing Machine is a tabletop, low‑force tester designed for small specimens, offering precise control of speed and displacement with a step motor drive and jog controller for fine positioning.
Explore more on PTS Lab:
Cometech Tensiles |
Cometech Grips & Fixtures |
Mechanical testing equipment |
All applications
The machine operates from a wide 100–240 V single‑phase supply, reducing installation constraints, and can be run either through the integrated controller for quick tests or via M1F software on Windows for full test programming, analysis and reporting.
Technical Specification
| Model | QC-528M1F |
|---|---|
| Maximum capacity | 500 N |
| Force units | gf, kgf, lbf, N, kN, ozf, tonf (SI/long/short); pressure units: kPa, MPa, psi, bar, mm‑Aq, mm‑Hg |
| Force resolution | 31‑bit measurement |
| Test stroke (without grips) | 400 mm |
| Stroke resolution | 0.05 mm |
| Speed range | 1.0–600.0 mm/min (computer‑settable), ±5% |
| Data sampling rate | Up to 400 Hz |
| Motor type | Step motor |
| PC port | RJ45 (TCP/IP), used with optional M1F software |
| Power supply | Single phase 100–240 VAC |
| Dimensions (W×D×H) | Approx. 48 × 29 × 83 cm |
| Weight | Approx. 30 kg |
Features & Functions
- Compact, lightweight design suited for bench‑top use and easy relocation, ideal for electronics, packaging, medical and general QC labs.
- Jog controller for precise small displacement adjustment and convenient force calibration.
- Automatic loadcell parameter memory so replacement loadcells are recognized without manual setup.
- Capable of tensile, compression, bending, peeling, constant‑force and other test modes when paired with suitable grips and fixtures.
- Protection features including force overload protection and automatic return on break detection or limit conditions.
Configuration & Options
- M1F test software (Windows) with multi‑language interface (including Chinese, English, Japanese and others), real‑time graphing and full data export/reporting.
- Software supports up to 400 Hz sampling, multiple test data sets viewed simultaneously, metric/imperial unit switching, and flexible table/graph layouts.
- Advanced software functions include statistical analysis, user‑defined formulas, configurable X–Y axes, upper/lower limit alarms, and multi‑stage test patterns (e.g. constant tensile compression sequences).
- Optional grips and fixtures for peel, bend, compression platens, food and packaging tests, and other applications.
Documents & Downloads
- Official manufacturer page:
Cometech QC-528M1F Universal Materials Testing Machine
- Datasheet (PDF):
QC-528M1F (500 N) datasheet
Applications & Case Studies
- Low‑force tensile and compression testing of plastics, rubbers, films, foils and light components in R&D and QC.
- Bending and peel tests for packaging materials, adhesive tapes and laminates.
- General mechanical characterization of small parts in electronics, medical devices and consumer products.
Support & Compatibility
- M1F software compatible with Windows 7 / 8 / 10, providing real‑time curves, multi‑unit support and comprehensive analysis/report output.
- TCP/IP two‑way communication allows remote control and monitoring from the PC, with support for saving, importing and listing test data.
