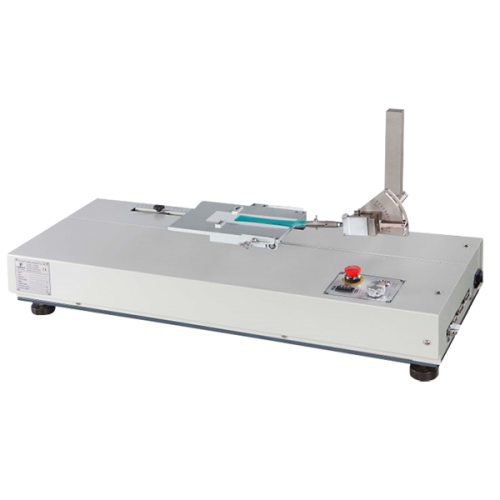

Cometech QC-527M2F Adhesion / Release Tester (500 N) – High‑Speed Peel Tester for Tape & Label (45°/90°/135°/180°)
Click to zoom
Main

Cometech QC-527M2F Adhesion / Release Tester (500 N) – High‑Speed Peel Tester for Tape & Label (45°/90°/135°/180°)

QC-527M2F is an adhesion/release peel tester for the tape & label industry, designed for both low‑speed and high‑speed peel tests and multi‑angle peel (45°/90°/135°/180°) to simulate real labeling and converting conditions.

  • Wide speed range: 100–30,000 mm/min adjustable (low speed commonly 300 mm/min; high speed commonly 10–30 m/min).
  • Measurement & motion: 500 N capacity, 600 mm stroke, 0.0001 mm stroke resolution, 31‑bit force resolution, force precision 1/100,000.
  • Connectivity & safety: RJ45 PC connection, up/down limit + emergency stop button, servo motor drive.
Interested?

Request a quote for this product

QC-527M2F is an adhesion/release peel tester for the tape & label industry, designed for both low‑speed and high‑speed peel tests and multi‑angle peel (45°/90°/135°/180°) to simulate real labeling and converting conditions.

  • Wide speed range: 100–30,000 mm/min adjustable (low speed commonly 300 mm/min; high speed commonly 10–30 m/min).
  • Measurement & motion: 500 N capacity, 600 mm stroke, 0.0001 mm stroke resolution, 31‑bit force resolution, force precision 1/100,000.
  • Connectivity & safety: RJ45 PC connection, up/down limit + emergency stop button, servo motor drive.

Overview

QC‑527M2F is designed to run adhesion, release and peel‑strength style tests across both low and high peel speeds, and it supports multi‑angle peel setups (45°/90°/135°/180°).

It is commonly selected for tape/label workflows where users want to compare peel behavior at QC speed versus real converting/labeling speeds.

Explore more on PTS Lab:
Cometech |
Mechanical testing equipment |
All applications

Technical specification

Model QC‑527M2F
Maximum capacity 500 N
Force resolution 31 bits
Force precision 1/100,000
Stroke (without grip) 600 mm
Stroke resolution 0.0001 mm
Speed range 100–30,000 mm/min adjustable
PC connection RJ45 (TCP/IP)
Hardware safety protection Up/down limit, emergency stop button
Motor Servomotor
Power Single phase 200–240 VAC, 15 A
Dimensions (W×D×H) 125 × 44 × 71 cm
Weight 100 kg

Test modes & standards

  • Low & high speed peel: Low‑speed peel is typically run at 300 mm/min; high‑speed peel is typically 10–30 m/min.
  • Multi‑angle peel: Supports 45°/90°/135°/180° peel test setups (fixture dependent).
  • Referenced standard: FINAT 4 (listed for the QC‑527M2F).

Key features

  • Adjustable sensor geometry: Force sensor position, height, angle and direction adjustments to support different peel geometries.
  • Sensor memory lock: Load cell memory supports automatic parameter switching when changing sensors, reducing manual setup.
  • Built for tape: Designed around tape/label peel evaluation at both QC speed and production‑like speeds.
