Cometech QC-526M2F Universal Testing Machine (20 kN) – High‑Speed Servo Double‑Column UTM (M2F Controller)

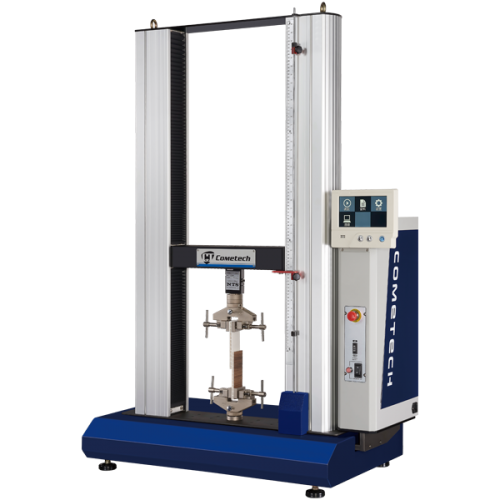

QC-526M2F is a double‑column, table‑type universal testing machine up to 20 kN with M2F controller, offering high‑precision servo control, long stroke and high‑speed data acquisition for tensile, compression, bending, peel and creep tests.
- Max. capacity 20 kN; force resolution 1/100,000 (31 bits) or 32‑bit depending on configuration; 800 mm stroke (standard).
- Servo motor drive with 0.0002–1000.0 mm/min speed range (software‑controlled); data sampling up to 1200 Hz.
- Large test space and multiple frame widths to handle oversized specimens, with optional loadcell anti‑collision and advanced M2F software.
Request a quote for this product
Overview
The Cometech QC‑526M2F Universal Materials Testing Machine is a high‑capacity, double‑column servo UTM designed for large specimens and demanding test programs, combining a 20 kN frame, long stroke and M2F controller for precise, low‑noise operation.
Explore more on PTS Lab:
Cometech Tensiles |
Cometech Grips & Fixtures |
Cometech Software & Controllers |
Mechanical testing equipment |
All applications
Cometech describes the QC‑526M2F as a maintenance‑free transmission system with high precision and low noise, using a servo motor and high‑precision ball screw for stable motion under 20 kN and enabling complex multi‑step and cyclic tests.
With M2F controller and software, the system supports advanced test modes such as constant load/stress/strain, creep, multi‑step speed profiles and custom test patterns, making it suitable for R&D, quality control and long‑term material evaluation.
Technical Specification
Standards (as listed in QC‑526M2F brochure): ISO 7500‑1, ASTM E4, ASTM D‑76, DIN 5122, JIS B7721/B7733, EN 1002‑2, BS 1610, GB/T 228.
Official standard pages (outbound):
ISO 7500‑1 |
ASTM E4
| Control Performance | |
|---|---|
| Force resolution | 32 bits (M2F display); some documentation also quotes 1/100,000 (31 bits) |
| Force precision | 0.5% / 1% (Note 1 – depends on chosen loadcell grade) |
| Stroke resolution | 0.0001 mm |
| Data sampling rate | 2–1200 Hz |
| Transmission System | |
| Motor | 400 W AC servo motor drives |
| Speed range | 0.0002–1000.0 mm/min (software‑controlled) |
| Speed precision | 0.0002–0.1 mm/min ±5%; 0.1–1000.0 mm/min ±1% |
| Data Processing System | |
| Network protocol | TCP/IP (RJ45 two‑way communication with PC) |
| Languages in display | Chinese, English, Japanese, Polish, Italian |
| Analysis modules in display | 9 analysis modules |
| Languages in M2F software | Chinese, English, Japanese, Korean, Portuguese, Spanish, Polish, Russian |
| Analysis modules in software | Over 210 analysis functions |
| Safety & Electrical | |
| Hardware protection | Upper/lower limit switches, emergency stop button |
| Software protection | Force, displacement and time protection; loadcell anti‑collision function (Note 2 – optional) |
| CE marking | Machinery Directive 2006/42/EC |
| Power supply | Single phase 200–240 V, 5 A |
| Max. power | 1200 W |
| Model | Capacity | Test stroke | Test space (A) | Width (W) | Depth (B) | Height (H) | Weight |
|---|---|---|---|---|---|---|---|
| QC‑526‑M frame | 20 kN | 800 mm | 425 mm | 940 mm | 530 mm | 1435 mm | 130 kg |
| QC‑526‑L frame | 20 kN | 1200 mm | 425 mm | 940 mm | 530 mm | 1885 mm | 145 kg |
Note 1: Force precision depends on the selected loadcell grade (Grade A: 0.5–100% ±0.5%; Grade B: 1–100% ±1% stated for M2F system).
Note 2: Anti‑collision function offers 90% protection for loadcells above 500 N on QC‑548 series and above 1000 N on QC‑526 series (Cometech statement); suitable for high‑capacity loadcells used on QC‑526M2F.
Features & Functions
- Advanced testing system: 32‑bit high‑precision resolution and optimized 1200 Hz acquisition allow accurate force and deformation measurement with dual A/D and encoder signal modules.
- Complete speed control: Software supports constant load/stress/strain/speed modes and multi‑step speed setting from 0.0002–3000 mm/min, covering a wide range of test requirements.
- Constant creep test: Creep testing can be performed over one month with full data recording for later analysis and reporting.
- Cyclic / reciprocating testing: Multi‑step cyclic tests capture max/min load, elongation, stress and displacement at each step for fatigue‑type evaluations.
- 7‑inch touch display panel (optional): Shows force, pressure, displacement and time, supports test speed/direction/auto‑return settings, interval force analysis, multi‑point stop conditions, USB data storage and stand‑alone calibration.
- Grips & fixtures: Compatible with wedge grips, bending fixtures, customized compression grips, compression platens with displacement sensors, cross‑peel shear grips and shaft‑centering grips.
Configuration & Options
- Frame variants: QC‑526M2F‑M (800 mm stroke) for most 20 kN tests; QC‑526M2F‑L (1200 mm stroke) for longer specimens or environmental chambers.
- M2F software (Windows 7/8/10): Data sampling up to 1200 Hz, supports multiple test data sets concurrently, flexible table layouts, user‑defined formulas, adjustable X–Y axes and extensive statistical tools.
- Loadcells (M2F system): Grade A/B loadcells with built‑in memory chips storing calibration parameters; safe overload 140% (Grade A) and 120% (Grade B) for 0.2–100% / 1–100% ranges respectively.
- Grips & fixtures: Full Cometech grip ecosystem for tensile, compression, flexure, peel, puncture and custom applications; see your Cometech Grips category for matching accessories.
Documents & Downloads
-
QC‑526M2F universal testing machine brochure (PDF, Cometech):
QC‑526M2F (20 kN) brochure
-
Universal Testing Machine QC‑526M2F specification (distributor):
QC‑526M2F specification overview
-
Universal Testing Machine QC‑526M2F (IPROS listing):
QC‑526M2F high‑performance M2F controller description
Applications & Case Studies
- High‑force tensile and compression tests on plastics, rubbers, metals, composites, textiles and belts/webbing up to 20 kN.
- Complex creep and cyclic testing programs for long‑term durability, including constant load/strain tests over days or weeks.
- Large‑specimen and wide‑fixture testing thanks to the wide frame options and long stroke (800/1200 mm), useful for structural parts and assemblies.
Related PTS Lab products:
QC‑526M1F Universal Testing Machine (20 kN, M1F) |
QC‑526D2 Universal Testing Machine (20 kN, D2)
Support & Compatibility
- M2F software communicates over TCP/IP with two‑way control, allowing automated test sequences, real‑time monitoring, data logging and export in formats compatible with Excel and QA systems.
- ISO 7500‑1 and ASTM E4 compliance supports calibration and verification workflows in accredited labs and production QA.
- Machine protections include over‑travel, overload and over‑time stop conditions, plus optional anti‑collision for loadcells, helping protect both operator and hardware.
