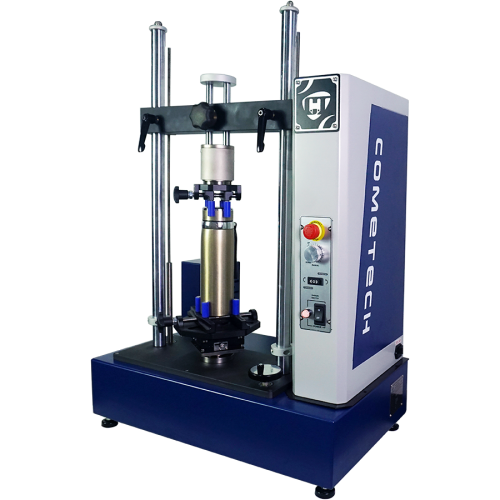

Cometech QC-41111M1F Programmable Torque Tester | Servo Motor | 3–100 N·m | 0.05–30 RPM | 7" TFT Touch Display
- Programmable servo-motor-driven torque tester for static and dynamic torsion analysis of bottle caps, torque wrenches, motors, bearings, and related rotational components — torsion is applied by rotating the lower clamp while the torque sensor mounted above detects and records torque in real time with full curve display.
- Torque capacity: 3 / 6 / 10 / 15 / 50 / 100 N·m (6 selectable ranges); resolution: 1/50,000 FS; test speed: 0.05–30.00 RPM (180–36,000 deg/min) digitally programmable; angular resolution: 0.01°; sampling rate: 1200 Hz.
- 7" TFT color touch display with dedicated PC software; supports multi-step and cycle test programming, TCP/IP interface, upper/lower limit pass/fail, 6 language options; data export via USB.
- Clamping space: max width 340mm, max height 400mm (without grip); dimensions: 70×40×106 cm; weight: 75 kg; power: AC220–240V, single phase, 5A.
Request a quote for this product
Overview
The Cometech QC-41111M1F Programmable Torque Tester uses a precision servo motor to apply controlled, steady torsion to a specimen by rotating the lower clamp in either clockwise or counter-clockwise direction, while the torque sensor mounted at the top captures the full torque-angle and torque-time curve in real time at up to 1200 Hz sampling rate.
Six interchangeable torque capacity options (3, 6, 10, 15, 50, and 100 N·m) combined with a programmable speed range of 0.05–30 RPM cover an extremely wide range of applications — from delicate pharmaceutical and cosmetic bottle caps to industrial torque wrenches and motor shafts.
The dedicated PC software, operated via TCP/IP connection, enables multi-step test programming, upper/lower limit evaluation, flexible data analysis, and export in 6 available interface languages.
Key Features
- Servo motor drive — stable, precise rotation from 0.05 to 30.00 RPM for both slow-torque and high-speed applications.
- 6 torque capacity options: 3 / 6 / 10 / 15 / 50 / 100 N·m — flexible for a broad application range.
- 1/50,000 FS resolution with 1200 Hz data sampling rate for high-precision torque curve analysis.
- 7" TFT color touch display showing real-time torque value and curve during test.
- PC software (TCP/IP): multi-step and cycle test programming, user-defined formulas, upper/lower limit pass/fail, graph marking, data save/load/compare.
- Software protection: over displacement, over load, over time, max torsion drop — auto-stop on trigger.
- Customized fixtures per specimen (bottle caps, torque wrenches, motors, bearings); manual height adjustment for upper grip.
- Torque units: MN·m, kN·m, N·m, N·cm, mN·m, kgf·m, kgf·cm, kgf·mm, gf·cm, gf·mm, lbf·ft, lbf·in, ozf·in.
- Angle units: deg, rad, rev; speed units: RPH, RPM, RPS.
- Languages: Chinese, English, Japanese, Korean, Spanish, Portuguese.
Full Specifications
| Model | QC-41111M1F |
|---|---|
| Type | Programmable Torque Tester |
| Torque capacity | 3 / 6 / 10 / 15 / 50 / 100 N·m |
| Torque resolution | 1/50,000 of full scale |
| Torque units | MN·m, kN·m, N·m, N·cm, mN·m, kgf·m, kgf·cm, kgf·mm, gf·cm, gf·mm, lbf·ft, lbf·in, ozf·in |
| Speed units | RPH, RPM, RPS |
| Angle units | deg, rad, rev |
| Motor | Servo Motor |
| Test speed | 0.05–30.00 RPM (180–36,000 deg/min), digital input |
| Test direction | Clockwise / Counter-clockwise |
| Angular resolution | 0.01° |
| Sampling rate | 1200 Hz (max) |
| Clamping space | Width: max 340 mm; Height: max 400 mm (without grip) — fixture customized per specimen |
| Display | 7" TFT color touch screen |
| PC interface | TCP/IP |
| Power | Single phase AC 220–240V, 5A |
| Dimensions | 70 × 40 × 106 cm |
| Weight | 75 kg |
| Languages | Chinese, English, Japanese, Korean, Spanish, Portuguese |
| Industries | Package, Electrical parts, Motor, Bearing, Related transmission parts |
