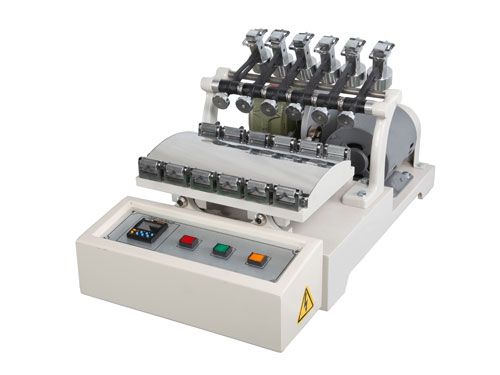

Cometech QC-319 Dyeing Rubbing Tester | Color Fastness to Rubbing (Dry / Wet)
- Dyeing rubbing tester for evaluating color fastness to rubbing on dyed textiles, leather, and fluff materials.
- Dry or wet rubbing using white cotton cloth (wet rubbing can be done with organic solvent, depending on your method).
- Selectable rubbing load 200 g or 500 g and reciprocating rubbing at 30 cycles per minute.
- Runs to a set rubbing count and stops automatically; assess staining/contamination on the white cloth to grade rubbing fastness.
- Six specimens can be tested per run for higher lab throughput.
Interested?
Request a quote for this product
Overview
Cometech QC-319 Dyeing Rubbing Tester is designed to evaluate color fastness to rubbing by performing controlled reciprocating abrasion against a white cotton cloth under a specified load. The rubbing cloth can be used dry or wet, and the tester runs at a fixed rubbing speed until the preset rubbing count is reached. After the test, the staining level on the white cloth is visually assessed to determine the rubbing fastness grade of the specimen.
Technical Specifications
Standards
JIS L0801, JIS L0849, JIS L1006, JIS L1084, K6328, P8136
Core specifications
| Model | QC-319 |
|---|---|
| Test quantity | 6 pieces per run |
| Specimen size | 22 × 3 cm |
| White cotton cloth size | 5 × 5 cm |
| Rubbing head size | 20 × 20 mm |
| Rubbing speed | 30 CPM |
| Load | 200 g (includes additional 300 g weight to reach 500 g) |
| Rubbing distance | 100 mm |
| White cloth rubbing area | Approx. 1 cm² |
| Counter | 1–99,999 cycles (auto stop at target count) |
| Power | Single phase 110V or 220V |
| Machine dimensions (W × D × H) | 45 × 65 × 35 cm |
| Machine weight | 45 kg |
Support materials
- Test video, teaching material, SOP, and test case (availability depends on configuration and region).
