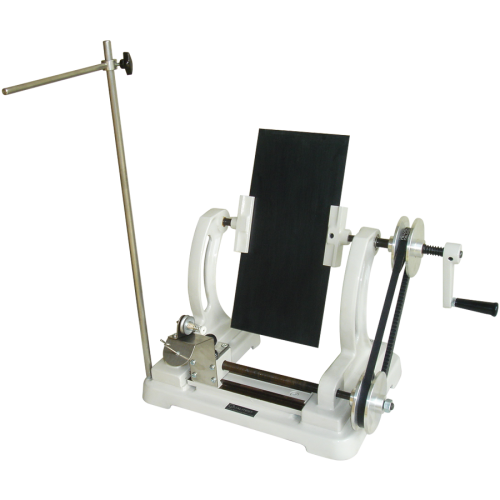

Cometech QC-311 / QC-312 Yarn Inspector | Manual & Motor Yarn Evenness / Neps Inspection
- Yarn inspector for evaluating yarn evenness, hairiness, neps, and impurities by winding yarn on a non-reflective black board.
- Recommended sampling: test at least 10 samples to calculate neps and impurity quantity for thread level evaluation.
- Suitable for cotton yarn, blended yarn (cotton/chemical fiber), and pure chemical fiber yarn.
- Two models: QC-311 (manual) and QC-312 (motor).
Interested?
Request a quote for this product
Cometech QC-311 (manual) and QC-312 (motor) Yarn Inspectors are used to wind yarn evenly onto a non-reflective black board so the user can visually evaluate yarn evenness, hairiness, neps, and impurities. For consistent grading, it is recommended to test at least 10 samples and calculate neps/impurity quantity to determine thread level. These models are suitable for cotton yarn, blended yarns, and pure chemical fiber yarns.
Technical Specifications
Typical applications
- Yarn appearance inspection for evenness, hairiness, neps, and impurities.
- Quality control sampling and grading (thread level determination based on sample statistics).
Model specifications
| Item | QC-311 (Manual) | QC-312 (Motor) |
|---|---|---|
| Black board area | 38 × 18 cm | 38 × 18 cm |
| Yarn density range | 12–28 / inch | 10–60 / inch |
| Drive / speed | Manual | Motor drive (winding speed 75 mm/min) |
| Machine dimensions (W × D × H) | 40 × 55 × 45 cm | 43 × 66 × 48 cm |
| Machine weight | 25 kg | 35 kg |
Industry
- Textile.
Support materials
- Test video, teaching material, SOP, and test case (availability depends on configuration and region).
