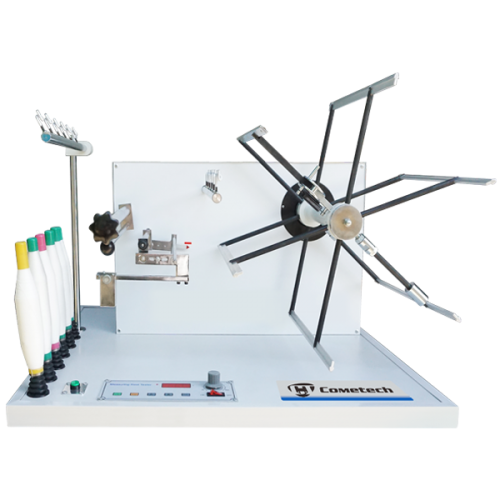

Cometech QC-302A Motor Wrap Reel | 100–300 r/min, 1 m/turn (Optional 1.5 yd/turn)
- Motor-driven wrap reel for preparing yarn skeins at a set circumference and defined number of turns for yarn testing workflows.
- Used to obtain yarn lea (skein) strength and, with balance weighing, to calculate yarn count.
- Speed range: 100–300 r/min; 6 winding sets; counter up to 9,999 turns.
- Reel circumference: 1 meter/turn (optional 1.5 yard/turn).
- Power: AC 110V or 220V; compact bench unit 75 × 68 × 50 cm, 55 kg.
Interested?
Request a quote for this product
Overview
Cometech QC-302A Motor Wrap Reel is designed to wind yarn at a fixed circumference and controlled speed to produce skeins of a specified length.
Prepared skeins can be used for lea (skein) strength evaluation and for yarn count calculation when combined with weighing on a balance.
Technical Specifications
Standards
ASTM D1059 / D1907 / D2260, ISO 7211 / ISO 2060, BS-2010.
Core specifications
| Model | QC-302A |
|---|---|
| Winding sets | 6 sets |
| Rotating speed | 100–300 r/min |
| Circumference per turn | 1 meter/turn (optional 1.5 yard/turn) |
| Counter | 5–9,999 turns |
| Power supply | AC 110V or 220V |
| Machine size (W × D × H) | 75 × 68 × 50 cm |
| Machine weight | 55 kg |
Industry
-
- Textile.
Related product
-
- QC-309D Yarn Twist Tester.
