Cometech QC-121M2F Box Compression Tester | 20kN–50kN | Carton, Foam & Styrofoam | ASTM D4169 / D642 / ISO 12048 / TAPPI T804 | 4 Type Options | PTS Lab UAE
- The QC-121M2F is a heavy-duty box compression tester for measuring the compression strength and deformation of large packaging materials including corrugated cartons, foam, and styrofoam — available in 4 types (A/B: 20kN, C/D: 50kN) with test spaces up to 120×120×120cm.
- 3-point bottom plate force sensing for high-accuracy force measurement; upper platen switchable between fixed and U-joint (swivel) to meet different standard requirements; 7-inch TFT color touch screen; speed range 0.0001–375mm/min; resolution 0.0001mm.
- Conforms to ASTM D4169, ASTM D642, ISO 12048, ISO 2872, TAPPI T804, JIS Z0403-2, DIN 55440-1, GB/T 4857-4, GB/T 16491, JIS Z0212.
- Industries: Paper, Food & Beverage, Packaging.
Interested?
Request a quote for this product
Overview

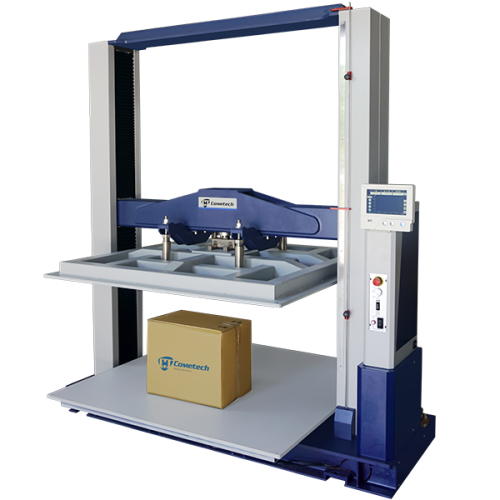

The Cometech QC-121M2F Box Compression Tester is designed to simulate the compressive forces that corrugated cartons, foam inserts, and styrofoam packaging encounter during transport, stacking, warehousing, and handling — quantifying the packaging's resistance to deformation and collapse under sustained or dynamic load.
The machine uses a 3-point bottom plate induction load measurement system rather than a single central load cell, distributing the force sensing across the base for more stable and accurate readings on large, irregularly supported carton specimens.
The upper platen can be configured as either fixed or U-joint swivel, allowing it to self-level against non-parallel carton surfaces during testing — a critical feature for conformance to ASTM D642, ISO 12048, and TAPPI T804 which specify flat-platen and swivel-platen conditions respectively.
Type Configuration Guide
The QC-121M2F is available in 4 types differing in test space and capacity:
| Type | Test Space (W×D×H) | Max. Capacity | Machine Dimensions | Machine Weight |
|---|---|---|---|---|
| A | 100 × 100 × 120 cm | 2,000 kg (20 kN) | 152 × 100 × 196 cm | 800 kg |
| B | 120 × 120 × 120 cm | 2,000 kg (20 kN) | 172 × 120 × 196 cm | 985 kg |
| C | 100 × 100 × 120 cm | 5,000 kg (50 kN) | 152 × 100 × 196 cm | 840 kg |
| D | 120 × 120 × 120 cm | 5,000 kg (50 kN) | 172 × 120 × 196 cm | 1,020 kg |
Full Specifications
| Model | QC-121M2F (A / B / C / D) |
|---|---|
| Max. capacity | A, B: 2,000 kg (20 kN) / C, D: 5,000 kg (50 kN) |
| Upper platen form | Fixed / U-joint swivel (adjustable) |
| Force units | gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) |
| Pressure units | kPa, MPa, psi, bar, mm-Aq, mm-Hg |
| Force resolution | 31 bits |
| Force accuracy | ±1% (within 5~100% of load cell capacity) |
| Displacement resolution | 0.0001 mm |
| Speed range (High) | 0.2–375.0 mm/min |
| Speed range (Low) | 0.0001–2.0 mm/min |
| Data sample rate | 1200 Hz (max.) |
| PC connection | TCP/IP two-way transmission |
| Display | 7-inch color touch TFT panel |
| Languages | Chinese, English, Japanese (controller); + Korean, Portuguese, Polish, Spanish, Russian (software) |
| Power supply (A, B, C) | Single Phase 220V, 5A |
| Power supply (D) | Single Phase 220V, 7A |
| Standards | ASTM D4169, ASTM D642, ISO 12048, ISO 2872, TAPPI T804, JIS Z0403-2, DIN 55440-1, GB/T 4857-4, GB/T 16491, JIS Z0212 |
| Industries | Paper, Food & Beverage, Packaging |
Key Features
- 3-point bottom plate force sensing system — more accurate force distribution vs. single central load cell for large irregular carton specimens
- Switchable fixed / U-joint swivel upper platen to satisfy different standard requirements in one machine
- 7-inch color TFT touch screen displays force, pressure, displacement, and time simultaneously with real-time curve graph
- High-speed mode (0.2–375mm/min) and ultra-low-speed mode (0.0001–2.0mm/min) in one machine
- 31-bit force resolution with ±1% accuracy across 5–100% load cell range
- Multiple stop conditions: force limit, displacement limit, time limit, break point detection
- Overload, over-travel, and overtime automatic protection
- Standalone operation (touch screen) or PC-connected via TCP/IP with optional software
- Stores up to 50 test results; USB data export
- Factory reset function; metric/imperial unit switching
- Optional software: import multiple datasets, user-defined formula, table/graph/both display modes, report output
Standards Compliance
- ASTM D4169 — Performance testing of shipping containers and systems
- ASTM D642 — Determining compressive resistance of shipping containers and cartons
- ISO 12048 — Packaging; complete filled transport packages; compression and stacking tests
- ISO 2872 — Packaging; complete filled transport packages; stacking tests
- TAPPI T804 — Compression test of fiberboard shipping containers
- JIS Z0403-2 — Packaging; complete filled transport packages; compression and stacking
- DIN 55440-1 — Packaging; compression and stacking test
- GB/T 4857-4 — Packaging; basic tests for transport packages; compression test
- GB/T 16491 — Electronic universal testing machine
- JIS Z0212 — Packaging; test method for compression of transport packages
