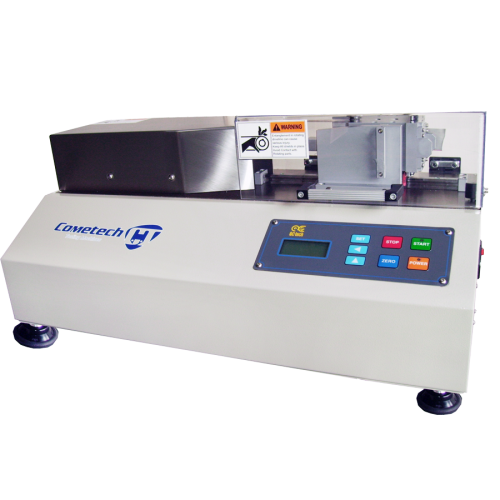

Cometech QC-119 FPC Flexible Testing Machine | 70 cpm, 100mm Stroke, 10mm Flex Radius, 99999999 Cycle Life Test
- Specialized life-cycle testing machine for flexible printed circuits (FPC) — simulates real-world bending motion to evaluate the service life and durability of flexible circuits in electronic applications.
- Test speed: 70 cycles per minute; stroke: 100 mm; flex radius: 10 mm (or as specified); automatic stop when preset test count is reached.
- Preset test count range: 1 to 99,999,999 cycles; 2 specimen sets tested simultaneously per run.
- Industry: Electronics — suitable for FPCs used in foldable smartphones, wearables, automotive electronics, medical devices, and other flexible circuit applications.
Interested?
Request a quote for this product
Overview
Cometech QC-119 FPC Flexible Testing Machine is designed to evaluate the bending endurance and service life of flexible printed circuits (FPCs) by simulating repeated flexing motions in the actual usage directions of the circuit.
The machine applies a continuous reciprocating bending motion at 70 cycles per minute with a 100 mm stroke and 10 mm flex radius — conditions that replicate the real-world bending experienced by FPCs in moving parts of electronic devices.
The machine automatically stops once the preset number of test cycles is reached, and supports testing two specimens simultaneously for improved throughput.
Key Features
- Simulates actual FPC usage motion — tests bending life in real-world usage directions.
- 70 cycles per minute (cpm) consistent testing speed.
- Flex radius: 10 mm (standard) or as specified by customer.
- Automatic stop when preset test count is reached.
- 2 specimen sets tested simultaneously.
- Preset range: 1 to 99,999,999 cycles — suitable for both short-run QC and long-duration life testing.
Full Specifications
| Model | QC-119 |
|---|---|
| Test speed | 70 cpm (cycles per minute) |
| Test stroke | 100 mm |
| Flex radius | 10 mm (or as indicated/specified) |
| Preset test count | 1 ~ 99,999,999 cycles |
| Specimen quantity | 2 sets |
| Auto stop | Automatic stop when preset count is reached |
| Industry | Electronics |
Support materials
- Test video, teaching material, SOP, and test case (availability depends on configuration and region).
