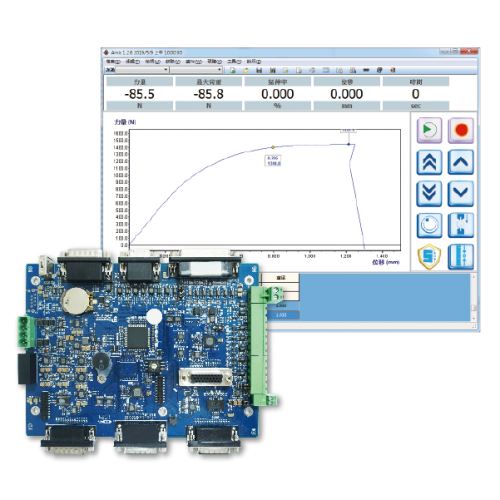

Cometech M1F Controller | Intermediate Multi-Task Material Testing Controller, Windows Compatible, TCP/IP, USB Export
- Intermediate-level multi-task planning controller for material testing — can analyze load cells, torque sensors, pressure sensors, encoders, and other input signal types.
- PC software mode via TCP/IP RJ45 (Windows 7/8/10 compatible); test data exported via USB to Excel for further analysis.
- 7-inch TFT color touch panel for stand-alone operation; Chinese, English, and Japanese language support.
- Data sampling rate up to 1200 Hz; supports tensile, compression, bending, peeling, tearing, hold tension/compression tests, and more.
Interested?
Request a quote for this product
Overview
Cometech M1F Controller is an intermediate-grade, multi-task material testing controller that can analyze signals from load cells, torque sensors, pressure sensors, and encoders.
It supports both stand-alone operation via its built-in 7-inch TFT color touch panel and full PC-software mode (M1F software, Windows-compatible) connected via TCP/IP RJ45 for real-time control, multi-curve display, and comprehensive test analysis.
Recorded test data can be saved via USB to Excel-compatible format for additional analysis, and users can optionally purchase dedicated M1F software or develop their own interface using the open communication protocol.
Stand-Alone Mode
- Real-time display of Force, Stress, Torque, Displacement, and Time on 7-inch TFT color touch panel.
- Graph display: Force, Displacement, Time.
- Data analysis: maximum force, interval force, force at break point, deformation %, stress, % elongation, and more.
- Data saved via USB (Excel-compatible format).
- Chinese, English, Japanese language selection.
- Metric and Imperial unit switchable.
PC Software Mode (M1F Software)
- TCP/IP two-way transmission via RJ45 — PC directly controls machine action.
- Compatible with Windows 7/8/10.
- Multi-curve display and real-time plot.
- Test screen can show data display, graph display, or both simultaneously.
- Form flexibility for self-planned information analysis; data names and formulas self-definable.
- Data processing: store, call, list, statistical comparison, etc.
- Software protection: overload, over-displacement, over-time protection.
- Variety of test actions: reciprocation, creep, hold tensile/compression, test pause, slip test, etc.
- Specimen setting and test conditions are modularized to reduce setting errors.
- Key data capture with upper and lower limit settings for data selection.
- Supports multiple I/O signals for additional test mechanisms.
- Optional dedicated software available; users may also write custom software.
Controller Level Comparison (Cometech lineup)
| Feature | D1 (Entry) | M1F (Intermediate) | M2F (Advanced) |
|---|---|---|---|
| Display | 7" TFT touch | 7" TFT touch | 7" TFT touch |
| PC software | Optional | Yes (Windows 7/8/10) | Yes (Windows 7/8/10) |
| Communication | TCP/IP RJ45 | TCP/IP RJ45 | TCP/IP RJ45 |
| Sampling rate | Up to 1200 Hz | Up to 1200 Hz | Up to 1200 Hz |
| Load cell precision | 1/10,000 | Intermediate | 1/100,000 (31-bit) |
| Encoder inputs | 2 sets | Intermediate | 4 sets (Int. + Ext.) |
| I/O expansion | Standard | Multi I/O | D-Sub expanded (4 in / 4 out) |
Applications (test types supported)
- Tensile test, compression test, bending test, peeling test, tearing strength test, hold tension/compression test, reciprocation test, creep test, slip test, and more.
Support materials
- Test video, teaching material, SOP, and test case (availability depends on configuration and region).
