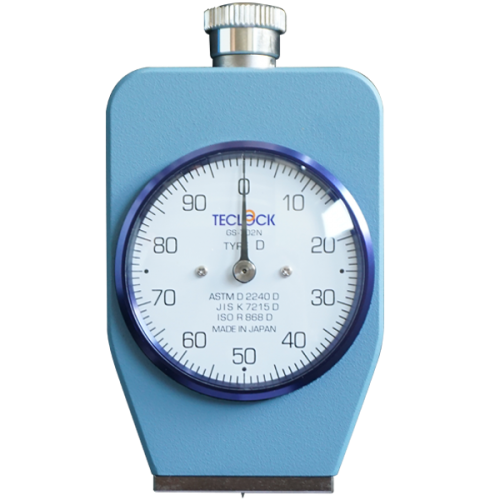

Cometech GS-702N D-Type Hardness Tester (Analog Durometer) | Shore D for Hard Plastics & Hard Rubber
- D-type (Shore D style) analog hardness tester for hard plastics and hard rubber (typically where Shore A is above 90).
- Pointer dial reading; recommended repeat measurements (5–10 times) and averaging for correct recording.
- Indenter: 30° cone, tip radius R0.1 mm; accuracy ±1 degree.
- Specimen thickness requirement > 6 mm; fixed-pressure load stand load 5 kg for improved repeatability.
- Conforms to JIS K7215-1992 (as stated on the D-type model page).
Interested?
Request a quote for this product
The Cometech GS-702N is a D-type hardness tester (analog durometer) used to measure hardness of hard plastics and hard rubber by applying a specified force and reading the value on the pointer dial.
Because handheld hardness readings can vary by operator force and measurement location, the recommended method is to take multiple readings (5–10 times, and at multiple positions) and use the average value for reporting.
Using a fixed-pressure load stand helps provide accurate load and improves measurement accuracy and reproducibility for QC and lab comparison.
Technical Specifications
Core specifications
| Model | GS-702N. |
|---|---|
| Tester type | D-type hardness tester (analog pointer). |
| Conforming standard | JIS K7215-1992. |
| Application | Plastic (hardness A value > 90 and above); used for hard plastics / hard rubber. |
| Accuracy | ±1 degree. |
| Indenter / probe | Tip point R0.1 mm; 30° cone shape. |
| Specimen thickness | > 6 mm. |
| Load stand (fixed-pressure) load | 5 kg. |
| Applicable industries | Rubber industry & plastic industry. |
Recommended test workflow (important)
- Perform 5–10 readings and record the average value for correct hardness reporting.
- Test at 5 or more positions on the specimen and average to reduce local variation effects.
- Use the load stand for consistent applied force to improve repeatability vs handheld-only measurement.
Support & compliance
- Cometech states professional engineer training and complete training content are provided.
- Cometech states free maintenance during the warranty period and parts availability for maintenance within 10 years via its ERP warehousing system.
- Cometech states it received CE certification from TUV and follows CE standard rules from design to manufacturing.
