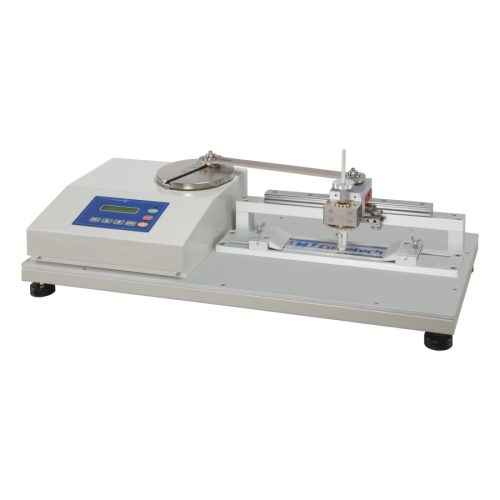

Cometech GI-M043 Solar Panel Abrasion Tester | Wool Felt, 10–150mm Stroke, 10–120 CPM, 125g–1000g+, 400×400mm Max Specimen
- Specialized solar panel surface abrasion tester — uses a wool felt abrasion head to simulate surface wear on photovoltaic (PV) panel surfaces; friction head auto-rotates 20° at the end of each stroke for uniform, realistic abrasion simulation.
- Stroke: 10–150mm adjustable (commonly used at 145mm); speed: 10–120 CPM (digitally settable); test count: 1–999,999 cycles with automatic stop.
- Base load: 125g; add-on counterweights: 50g, 100g, 200g, 300g, 500g, 1000g (each 1 pc) — configurable per test standard load requirements.
- Max specimen size: 400×400mm; power: 100–240V; industries: Electronics, Optics.
Interested?
Request a quote for this product
Overview
Cometech GI-M043 Solar Panel Abrasion Tester is purpose-built for evaluating the abrasion resistance and surface durability of solar panel (photovoltaic module) surfaces.
A wool felt abrasion head is loaded with the required weight and moved back and forth over the panel surface at the programmed stroke length and speed — critically, at the end of each stroke, the friction head automatically self-rotates by 20° to simulate realistic multi-directional wear rather than unidirectional scratching.
The operator sets the required load, stroke, speed, and number of cycles; the machine stops automatically when the preset count is reached, and the operator evaluates the surface damage condition of the test specimen.
Key Features
- Wool felt abrasion head — standard consumable for solar panel surface wear simulation.
- Friction head auto-rotates 20° per stroke end — ensures realistic, uniform abrasion pattern.
- Fully adjustable stroke (10–150mm), speed (10–120 CPM), load, and cycle count — flexible for different test standard requirements.
- Automatic stop at preset test count — no manual monitoring during long test runs.
- Large specimen capacity up to 400×400mm — accommodates full-size panel sections.
- Wide voltage compatibility: 100–240V — suitable for global use.
Full Specifications
| Model | GI-M043 |
|---|---|
| Test stroke | 10–150mm adjustable (common use: 145mm) |
| Test speed | 10–120 CPM (digitally settable) |
| Test times | 1–999,999 times (auto stop at preset count) |
| Test load | Basic load (without counterweight): 125g Add-on counterweights: 50g, 100g, 200g, 300g, 500g, 1000g (each 1 pc) |
| Friction head rotation | Self-rotates 20° at end of each stroke |
| Accessory included | 1 set of wool felt grip |
| Max specimen size | 400 × 400 mm |
| Power | 100–240V |
| Industries | Electronics, Optics |
