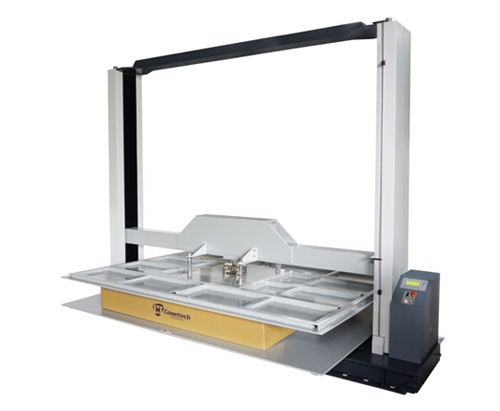

Cometech DAS1043-M010 / DAB1010-M010 LCD Monitor Carton Packaging Compression Tester (20 kN / 50 kN)
SHORT_DESC:
- Designed to test large LCD screen packaging materials (e.g., styrofoam and other packaging containers) for whole-carton compression strength.
- Three-point bottom plate induction for stable load measurement and improved accuracy on large packaging specimens.
- Large size and capacity options; servo motor drive with safety limits and emergency stop.
- 7-inch TFT color touch controller with real-time curve display, data analysis, and USB export (stores up to 50 results).
- Optional PC software via TCP/IP for advanced testing, analysis, and reporting.
Interested?
Request a quote for this product
Overview
The LCD Monitor Carton Packaging Compression Tester is built for compression strength testing of large packaging used for LCD screens and similar products. It helps verify that packaging strength is sufficient for transport, stacking, storage, and handling so products are better protected from deformation and damage. The system uses stable three-point load sensing and supports large test spaces for bulky cartons and foam packaging.
Technical Specifications
Standards
- ISO 12048
- ISO 2872
- ASTM D4169
- TAPPI T804
- GB/T 4857-4
- JIS Z212
Model options
| Model | Max capacity | Test space (L × W × H) | Machine size (L × W × H) | Approx. weight |
|---|---|---|---|---|
| DAS1043-M010 | 5000 kg (50 kN) | 2700 × 1800 × 1500 mm | 2700 × 2590 × 2400 mm | Approx. 2100 kg |
| DAB1010-M010 | 2000 kg (20 kN) | 1800 × 2600 × 1600 mm | 1800 × 3261 × 2600 mm | Approx. 2600 kg |
Machine performance
| Force resolution | 31 bits |
|---|---|
| Force precision | 1/100,000 |
| Stroke resolution | 0.0001 mm |
| Test speed (Low speed mode) | 0.0001 – 0.95 mm/min |
| Test speed (High speed mode) | 0.015 – 300 mm/min |
| Motor | Servo motor |
| Safety protection | Up/down limit, emergency stop button |
| PC port | RJ45 (TCP/IP) |
| Power | Single phase 200 – 240 VAC |
Controller (7-inch TFT touchscreen)
- Languages: Chinese, English, Japanese.
- Data display: Force, Stress, Torque, Displacement, Time.
- Test setting: speed, direction, auto return, breaking-point stop.
- Data analysis: maximum force, interval force, breaking-point force.
- Stand-alone calibration mode.
- Shutdown conditions: force, displacement, time, elongation.
- Metric/imperial units.
- Over-travel, overload protection and overtime stop.
- Stores up to 50 results; USB export.
Optional PC software (TCP/IP)
- Data sampling rate up to 1200 Hz.
- Windows compatible (Win 7 / 8 / 10).
- Multi-language UI: Chinese, English, Japanese, Korean, Spanish, Polish, Portuguese.
- Two-way TCP/IP communication; PC can directly control machine actions.
- Multiple test datasets can be imported and displayed together.
- Flexible tables/graphs, storage, listing, statistical comparison, and reporting.
- Protection features: overload, over-displacement, over-time.
- Supports multiple test types and actions (compression and more), with modular specimen and test-condition settings.
