Cometech BTS / NTS Series Load Cells | Tension & Compression | 10N–20kN | BTS, FCS, LRK, LRM, LCX Models
- Cometech load cells in two precision series — BTS (high accuracy, models BTS and FCS) and NTS (high precision, models LRK, LRM, LCX) — both are tension and compression dual-use sensors with very small pull/push error, designed for material testing machines and industrial strength analysis applications.
- Available capacities: 10N, 20N, 50N, 100N, 200N, 500N, 1kN, 2kN, 5kN, 10kN, 20kN — selectable per test requirement.
- BTS/FCS series: optimized for industrial strength analysis and general material testing; NTS series (LRK, LRM, LCX): high precision with ±0.5% accuracy, optimized for material testing and automotive component testing.
- Compatible with Cometech universal testing machines as primary or replacement load cells; grade A/B classification meets international accuracy standards.
Request a quote for this product
Overview
Cometech supplies two load cell series to pair with their universal testing machines and force measurement systems: the BTS/FCS series for high-accuracy general material testing and industrial strength analysis, and the NTS series (models LRK, LRM, and LCX) for high-precision measurement at ±0.5% accuracy targeting material testing and automotive component evaluation.
Both series are tension and compression dual-use sensors, covering a wide capacity range from 10N to 20kN to suit light-duty film and tape testing through heavy-duty pipe and profile testing.

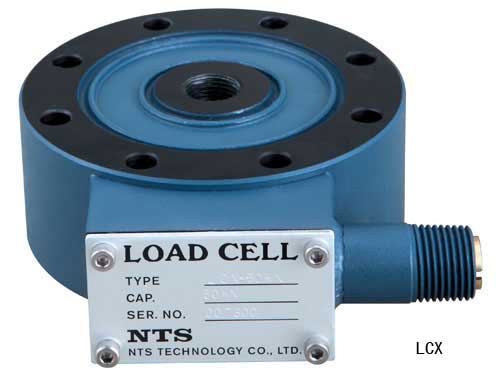

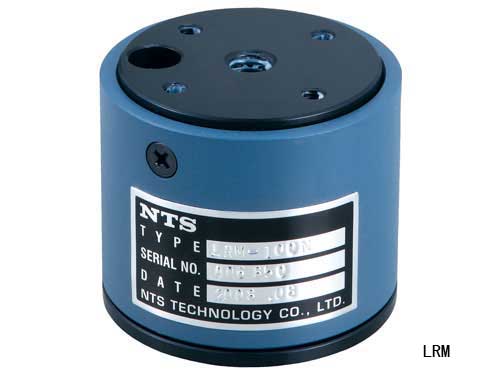

Grade A/B certified load cells are supplied in multiple form factors — LRK and LRM for inline tension/compression, LCX for pancake-type installations — depending on the machine configuration and fixture requirements.
Series Overview
| Series | Models | Type | Accuracy | Primary Applications |
|---|---|---|---|---|

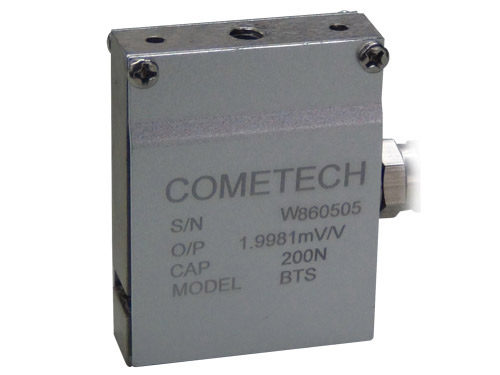

| BTS | BTS, FCS | Tension & Compression dual-use | High accuracy (grade A/B) | Material testing, industrial strength analysis |
| NTS | LRK, LRM, LCX | Tension & Compression dual-use | ±0.5% (grade A/B) | Material testing, automotive component testing |
Available Capacities
10N | 20N | 50N | 100N | 200N | 500N | 1kN | 2kN | 5kN | 10kN | 20kN
Full Specifications
| Series | BTS / NTS |
|---|---|
| Models | BTS, FCS (BTS series); LRK, LRM, LCX (NTS series) |
| Measurement type | Tension and Compression (dual-use) |
| Capacity range | 10N, 20N, 50N, 100N, 200N, 500N, 1kN, 2kN, 5kN, 10kN, 20kN |
| NTS accuracy | ±0.5% |
| Grade | Grade A / Grade B (meets international accuracy standards) |
| Compatible machines | Cometech universal testing machines (primary and replacement load cells) |
| Industries | Polymer, Rubber, Pipe, Packaging & Disposable Containers, uPVC & Window Profiles |
