Combi High-Temperature Furnace LHT 08/17 BO up to 1750 °C with integrated catalytic post combustion
The Nabertherm LHT 08/17 BO Combi Furnace is a “Made in Germany” 2-in-1 solution. It performs **debinding/ashing up to 600°C** and subsequent **sintering up to 1750°C** in one unit. It features integrated catalytic post combustion, **MoSi₂ heating**, and a **P580 controller** as standard.
The Nabertherm LHT 08/17 BO is a unique “Made in Germany” combi furnace that provides a 2-in-1 solution for advanced labs. In fact, it complements our standard ashing furnaces by providing a solution for debinding/ashing processes up to 600 °C with a subsequent sintering process at high temperatures (up to 1700 °C working temperature) in a single unit.

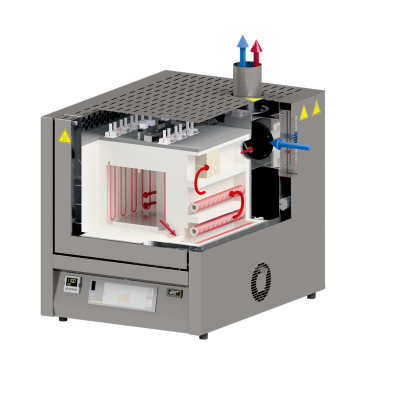

This compact furnace is ideal for research and development, ashing samples that require post-sintering, or for debinding and sintering small additively manufactured components. Furthermore, the LHT 08/17 BO features a passive safety system with integrated exhaust gas post combustion. An exhaust fan actively feeds pre-heated fresh air for the ashing process, while exhaust gases are extracted, incinerated, and catalytically cleaned.
Standard Equipment:
Every LHT 08/17 BO furnace includes these premium “Made in Germany” features as standard:
- Max Temperature: 1750 °C (Tmax 600 °C for the debinding/ashing process).
- 2-in-1 Process: Combines ashing/debinding and high-temperature sintering in one furnace.
- MoSi₂ Heating Elements: High-quality Molybdenum Disilicide heating elements (heating from two sides).
- Integrated Post Combustion: A thermal/catalytic converter (functional up to 600 °C) with temperature control up to 850 °C.
- Advanced Controller: Comes standard with the powerful **P580 controller** (50 programs, 40 segments each).
- Standard Safety Feature: Includes an over-temperature limiter with an adjustable cutout temperature to protect the furnace and load.
- Advanced Venting: Fresh air is preheated by an additional heating element for excellent temperature uniformity.
- Lift Door: A spring-supported lift door with a mechanical lock to prevent unintended opening.
- RCF-Free Insulation: Exclusive use of high-quality, non-carcinogenic insulation materials.
- Data Recording: Includes NTLog Basic, NTEdit, NTGraph, and the MyNabertherm App for full data recording and monitoring.
The LHT 08/17 BO is a complete system that includes nearly all features as standard. The following upgrade is available for advanced data integration.
Available Options & Accessories:
- Process Control Software: Integrate your furnace with the powerful VCD software package for comprehensive, PC-based process control, monitoring, and documentation.
Related Products:
These furnaces are part of our complete range of Nabertherm laboratory products. For ashing-only processes, see our L ../11 BO Ashing Furnace.
This “Made in Germany” combi furnace is offered in a 6-liter model, designed for maximum thermal performance and safety in a compact footprint. The table includes maximum loading weights for organic substances and their evaporation rates (values are estimates).
LHT 08/17 BO Model Specifications
| Model | Tmax (°C) | Inner (w x d x h) mm | Volume (L) | Outer (W x D x H) mm | Max. Load (g) | Max. Evap. Rate (g/min) | Load (kW) | Electrical | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| LHT 08/17 BO | 1750 | 150 x 250 x 150 | 6 | 530 x 705 x 695 | 75 | 1 | 13 | 3-Phase | 90 |
Note: Outer dimensions may vary with additional equipment.
