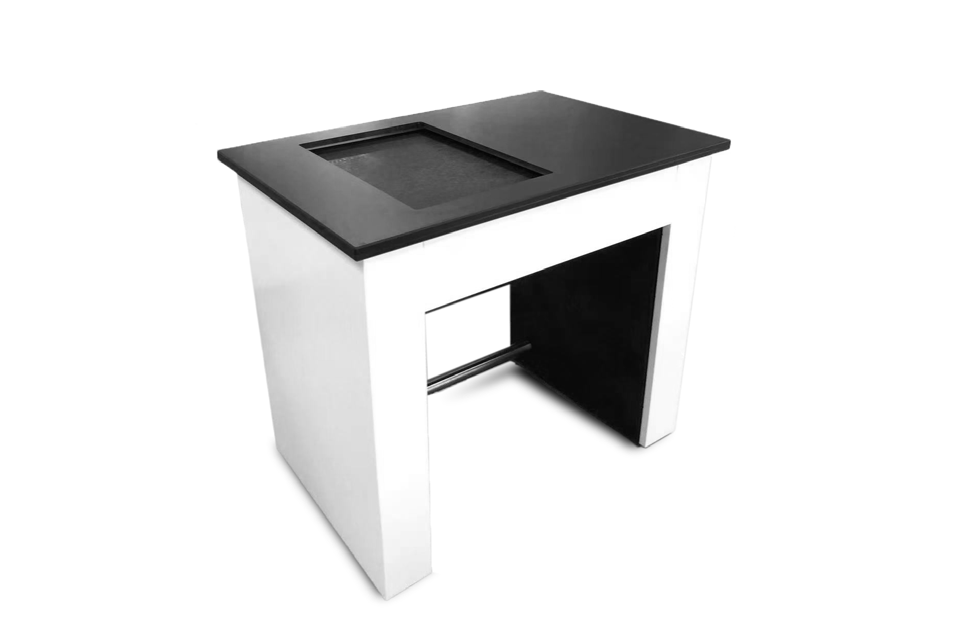

Anti-Vibration Table, model TAV-PLUS
The BEL Engineering TAV-PLUS (BL0660) is a premium anti-vibration table for ultra-sensitive laboratory instruments. It features a massive, solid granite top and solid granite legs, decoupled from an outer steel frame to provide the ultimate stability and vibration isolation.
Description
Documentation
Description
For metrology applications demanding the absolute highest level of precision, the BEL Engineering Anti-Vibration Table TAV-PLUS (BL0660) provides the ultimate stable environment. This is the premium solution for isolating microbalances, analytical balances, and other ultra-sensitive instruments from all sources of vibration.
The TAV-PLUS features a massive, no-compromise construction. Unlike standard tables, it is built with a solid large granite slab that rests on two solid granite legs. This granite top is held by four ball-head solid stainless steel supports. This core structure is completely isolated from an outer, separate metal steel frame, ensuring that no vibrations from the floor, building, or user can reach the instrument.
This design provides unparalleled damping and stability, making the TAV-PLUS Anti-Vibration Table the definitive choice for calibration labs and high-level R&D.
Key Features:
- Solid Granite Construction: The table top and legs are made of solid granite for maximum mass and vibration damping.
- Superior Isolation: A separate outer steel frame and ball-head stainless steel supports ensure the weighing surface is completely decoupled from the environment.
- Premium Work Surface: The table top is made from a high-resistance phenolic laminate.
- Extreme Stability: With a net weight of 259 kg, this table provides an immovable foundation for your most sensitive measurements.
Applications Across Your Industries
The TAV-PLUS is the professional standard for any laboratory where measurement accuracy is non-negotiable. Its function is critical for advanced applications across all your industrial segments:- Polymer & Rubber Industry: Essential for R&D labs performing micro-weighing for additive development, formulation research, and thermogravimetric analysis (TGA) preparation.
- Pipe & UPVC Profile Industry: Guarantees the highest accuracy for material characterization, density calculations, and regulatory compliance testing where results must be indisputable.
- Packaging & Disposable Container Industry: Allows for precision weighing of barrier layers, coatings, and micro-additives, ensuring product performance and consistency.
- All Calibration Labs: The required standard for calibrating balances or performing any weighing task at 0.01mg readability or higher.
Product Specifications
| Specification | Detail |
|---|---|
| Model | TAV-PLUS |
| BEL Code | BL0660 |
| Construction | Steel / Granite |
| Table Top | High-Resistant Phenolic Laminate |
| Overall Dimensions (L x D x H) | 90 x 60 x 80 cm |
| Table Top Opening Dimension | 50 x 35 x 12 cm |
| Net Weight (Total) | 259 kg |
Related Accessories
This table is the perfect companion for high-precision BEL Engineering Analytical Balances and is a part of our complete Balance Accessories catalog.Documentation
Product Resources
For detailed technical information, specifications, and operational guides related to this product, please download the available documentation.
