Ashing Furnaces up to 1100 °C

The Nabertherm Ashing Furnace LV(T) ../11 series is specifically designed for high-oxygen ashing processes in the laboratory. It is the ideal “Made in Germany” solution for applications like determining loss on ignition, ashing food, or ashing polymers and plastics for subsequent substance analysis.

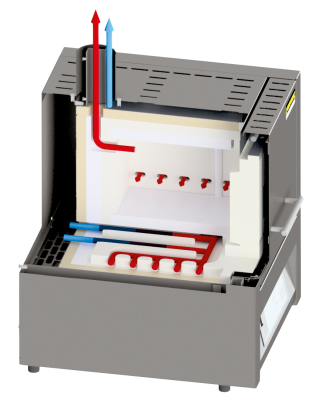

Its most critical feature is a **special fresh-air and exhaust system that replaces the air 6 times per minute**. This guarantees there is always sufficient oxygen for a complete and rapid ashing process. To ensure high precision, the incoming air is pre-heated by passing the furnace heating, which provides excellent temperature uniformity (to ±10 °C).

Standard Equipment:

• “Made in Germany” Quality: Engineered for standardized ashing processes (ISO, ASTM, EN, DIN).
• Max Temperature: 1100 °C.
• High Air Exchange: Air is replaced more than 6 times per minute for oxygen-rich ashing.
• Temperature Uniformity: Achieves ±10 °C uniformity (from 550 °C) by pre-heating the incoming air.
• Reliable Heating: Heating from two sides via ceramic heating plates with integral, safeguarded heating elements.
• Door Options: Available as a standard flap door (LV) that can be used as a work platform, or a space-saving lift door (LVT) with the hot surface facing away from the operator.
• RCF-Free Insulation: Exclusive use of high-quality insulation materials without categorization (non-carcinogenic).
• Durable Housing: Dual-shell housing of textured stainless steel with fan cooling for low surface temperatures.
• Advanced Controller: Standard B510 controller (5 programs, 4 segments) with a clear touch-screen display.
• Quiet Operation: Uses solid-state relays for low-noise heating.
• Data Recording: Includes NTLog Basic for recording process data via a USB flash drive.

Customize your Nabertherm ashing furnace to match your laboratory’s specific throughput and safety protocols with these optional accessories.

Available Options & Accessories:

• Over-Temperature Limiter: A critical safety feature (thermal protection class 2) with an adjustable cutout temperature to protect the furnace and your valuable load during unattended operation.
• Thermocouple Port: An optional port in the rear wall or furnace door for an independent thermocouple.
• Multi-Level Charging Rack: Efficiently load the furnace in two levels with this rack. It includes perforated trays and a holder for insertion/removal (up to 800 °C). Max load per layer is 2 kg (LV 9/11) or 3 kg (LV 15/11).
• Process Control Software: Integrate your furnace with the powerful VCD software package for comprehensive, PC-based process control, monitoring, and documentation.

Related Products:

These furnaces are part of our complete range of Nabertherm laboratory products. For ashing that produces heavy smoke, see our Ashing Furnace with Post Combustion (BO Series).

The 1100 °C LV(T) Ashing Furnace is available in four sizes, from 3 to 15 liters, all featuring the high air-exchange system. This table includes critical data on max loading and evaporation rates for organic substances.

Note: Heating times are to Tmax -100 K. Recommended working temperature for processes with longer dwell times is 1000 °C. Max loading weights are for organic substances. Outer dimensions include exhaust tube.
